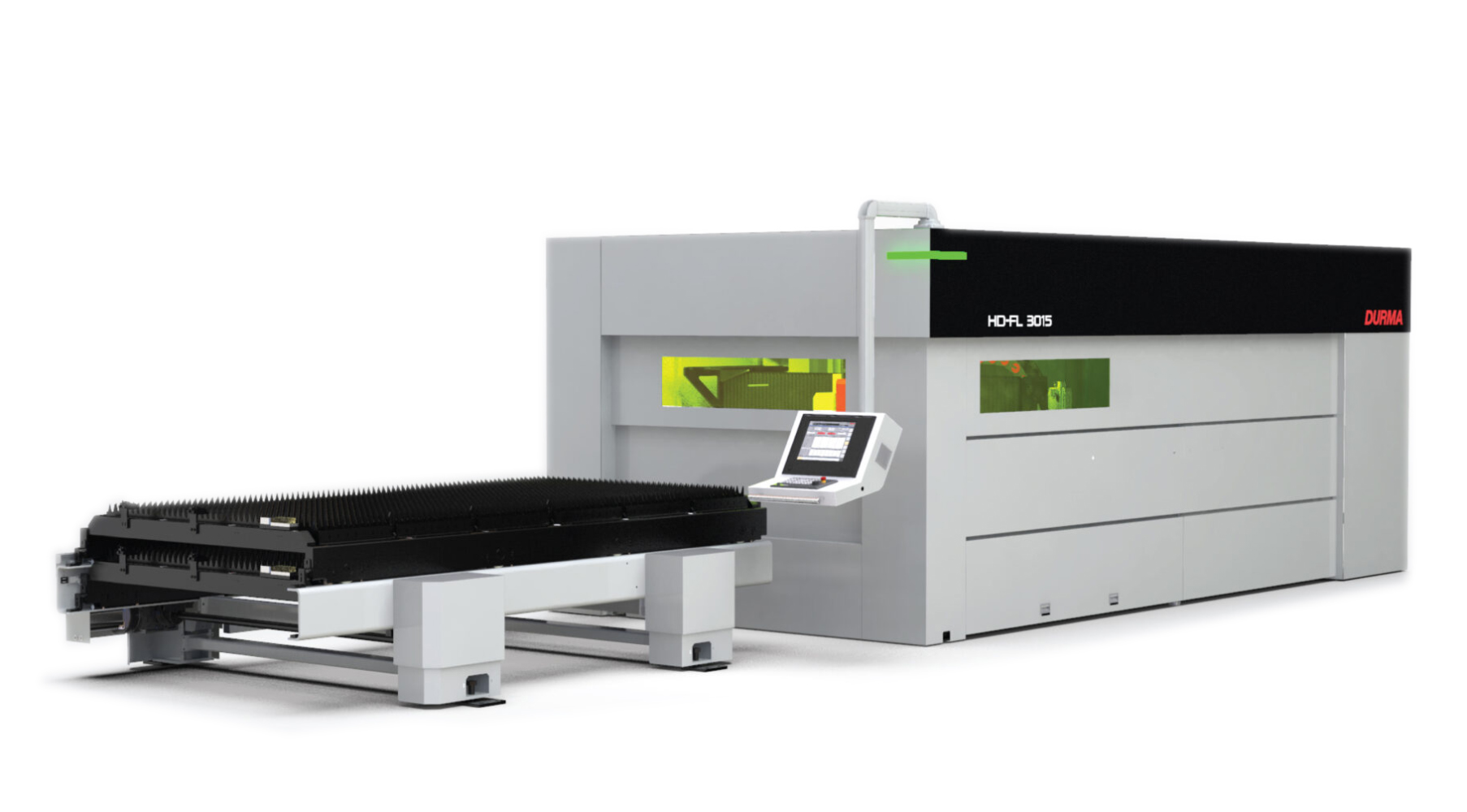

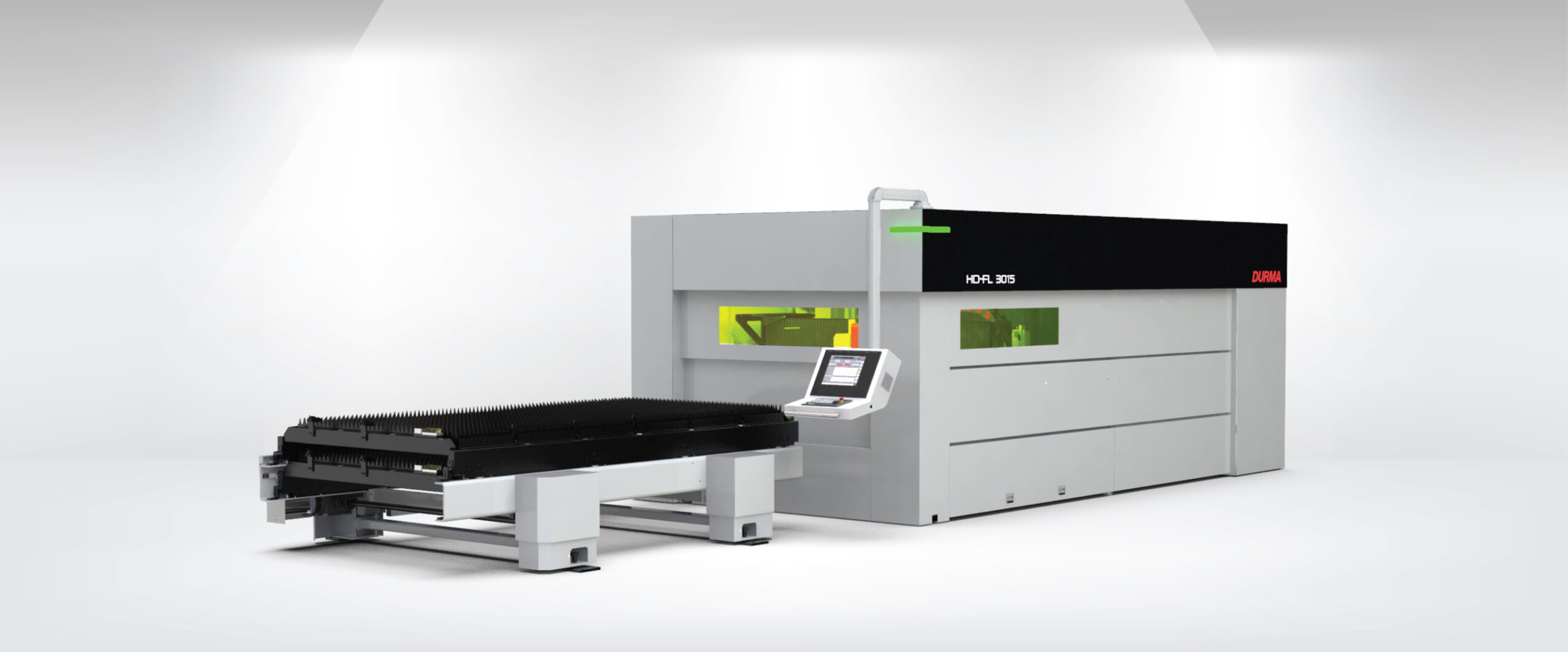

The HD-F Combi Tube Flat Fibre Laser is designed for a versatile tube-to-flat and flat-to-tube application. Featuring automated tube feed and flat table repeatability. The body of the machine is steel, while the bridge is of aluminum-welded steel construction. Moving axes work with dynamic, high-performance AC Servo engines and linear motors that do not require maintenance. A multicellular suction system is used to vacuum the dust generated during the laser cutting process, dust created is handled by dust filters. All scrap parts and small parts that fall to the bottom during cutting are collected and dropped into scrap boxes within the shortest time with a vertical conveyor system.
Standard features on the HD-F Combi include:
MODEL
Unit
Pipe – Profile cutting (HD-F 3015 & HD-F 4020 & HD-F 6020)
Maximum pipe diameter
mm
170
Maximum square profile dimension
120 x 120
Maximum rectangle profile dimension
150 x 100
Minimum pipe diameter
20 (12 Ops.)
Maximum material length
6500
Maximum material length for auto unloading**
4500
Maximum material length for manual unloading**
6000
Maximum material weight
Kg/m
37.5
Maximum total material weight
Kg
210
Cutting tolerance
±0.2
*6500 mm for HD-F 6020
**6500 mm for HD-F 6020
***The maximum cutting precision on the part depends on the type of profile and the production method.
