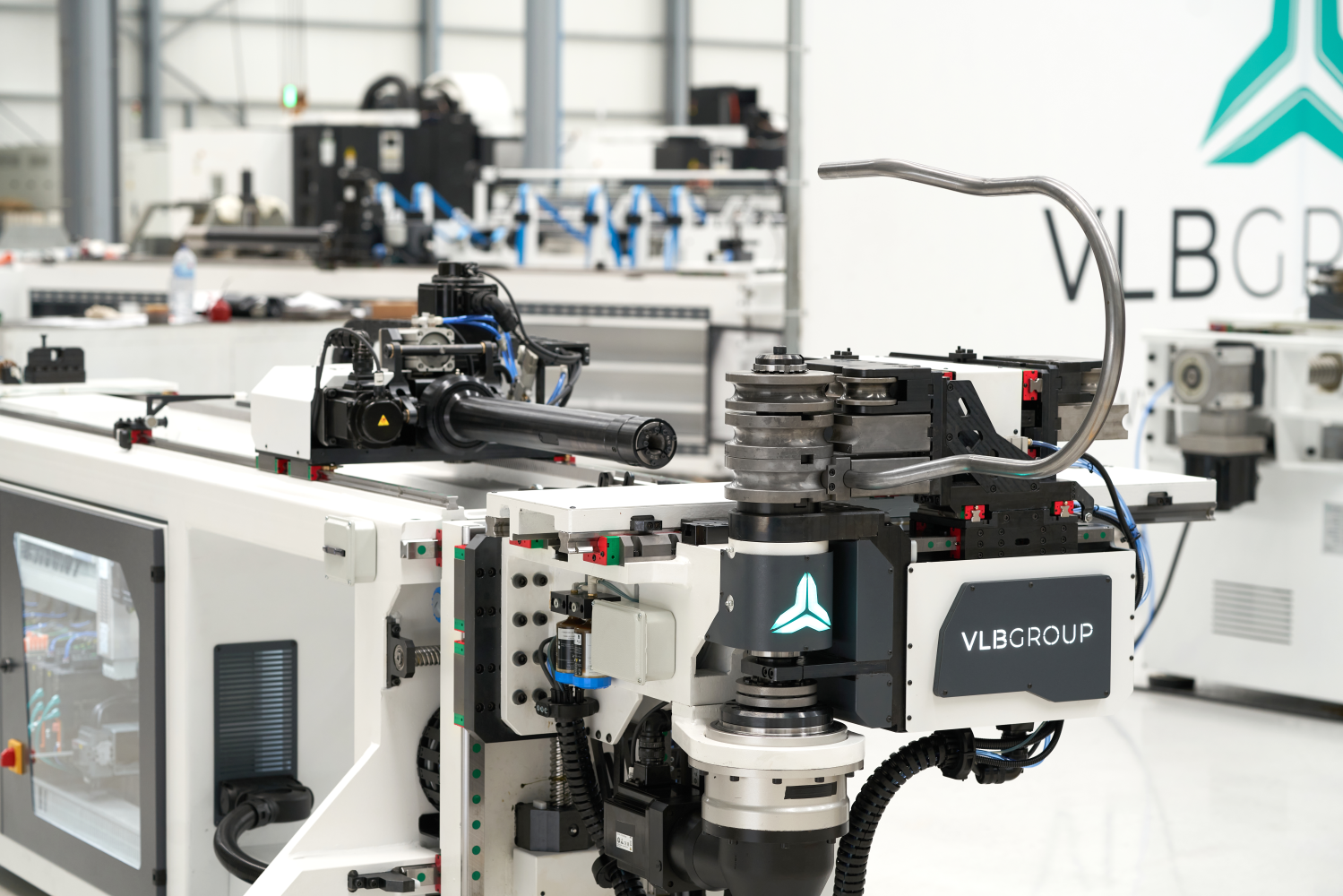

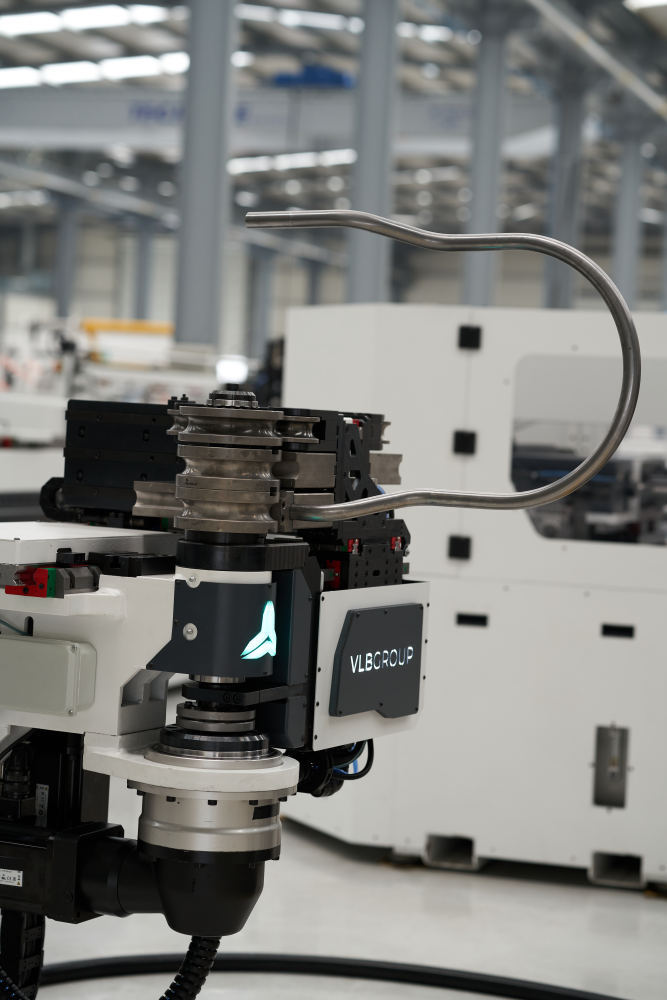

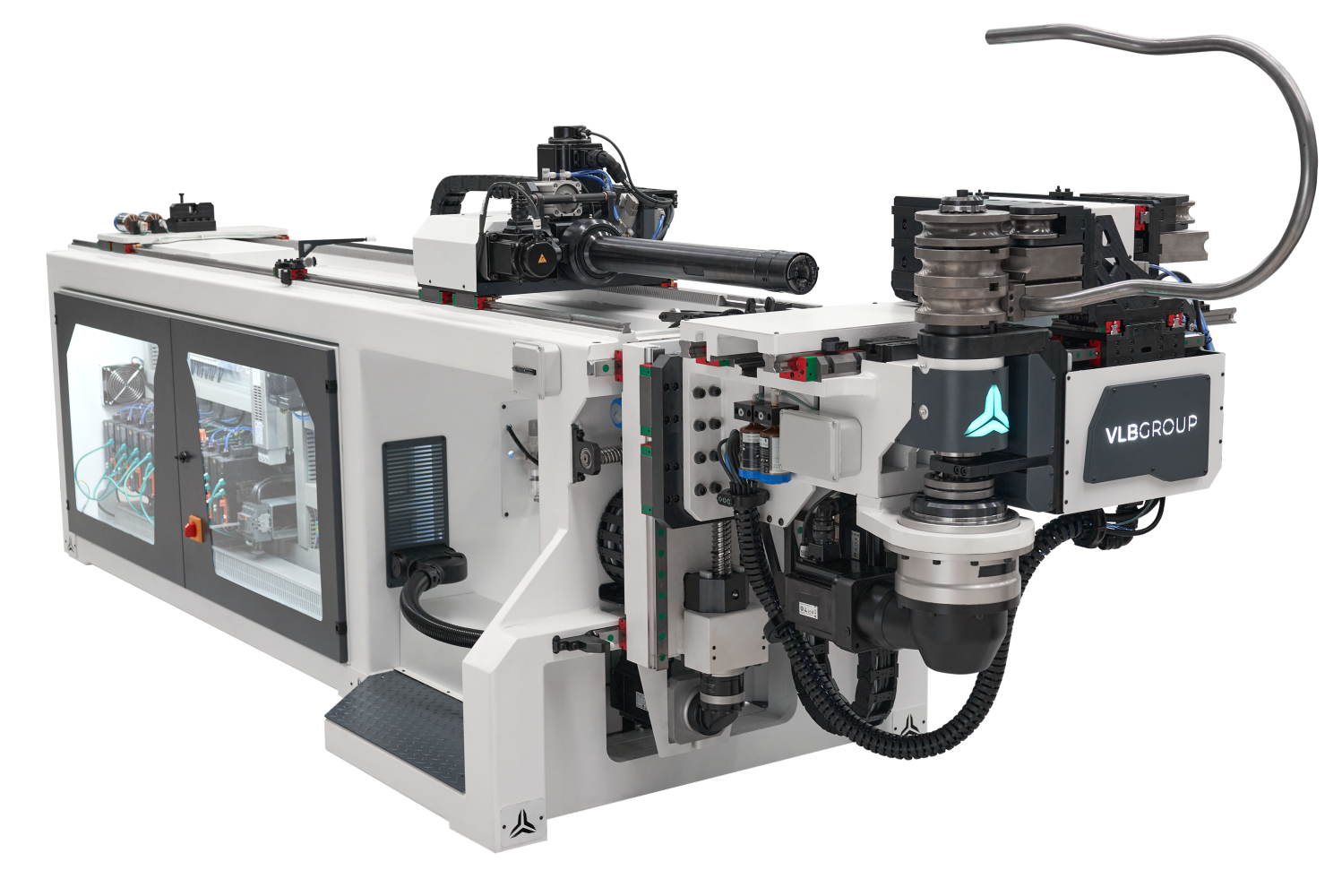

EB LEFT RIGHT SERIES TUBE BENDING MACHINE

The EB-CNC-LR series of electric VLB tube bending machines with left/right directional bending capabilities are equipped with the latest Electric Motion technology. The tube and pipe bending head has horizontal and vertical linear axes. The system offers complete freedom of movement and allows the production of very complex parts in an automatic bending cycle. This range of machines is capable of bending tube and pipes with profiles from 6mm-35mm. When equipped with the booster system, radii of up to 1D are possible with minimal marking. The EB-CNC-LR Series has mobile device connectivity, is Industry 4.0 ready, has a touchscreen controller, can integrate into production cells, can offer online remote assistance and the software enables 3D file import.

EB CNC LR Series of tube and pipe bending machines features:

• 100% electric drive of all 9 axes.
• Tube bending head with horizontal and vertical linear axis.
• Tube bending clockwise and counter clockwise in automatic cycle.
• Bending of multiple fixed and variable radii in the same cycle.
• Quick tool change, without having to readjust.
• High working speed and low power consumption.
• Axis movements controlled by servo motors with absolute encoder feedback.
