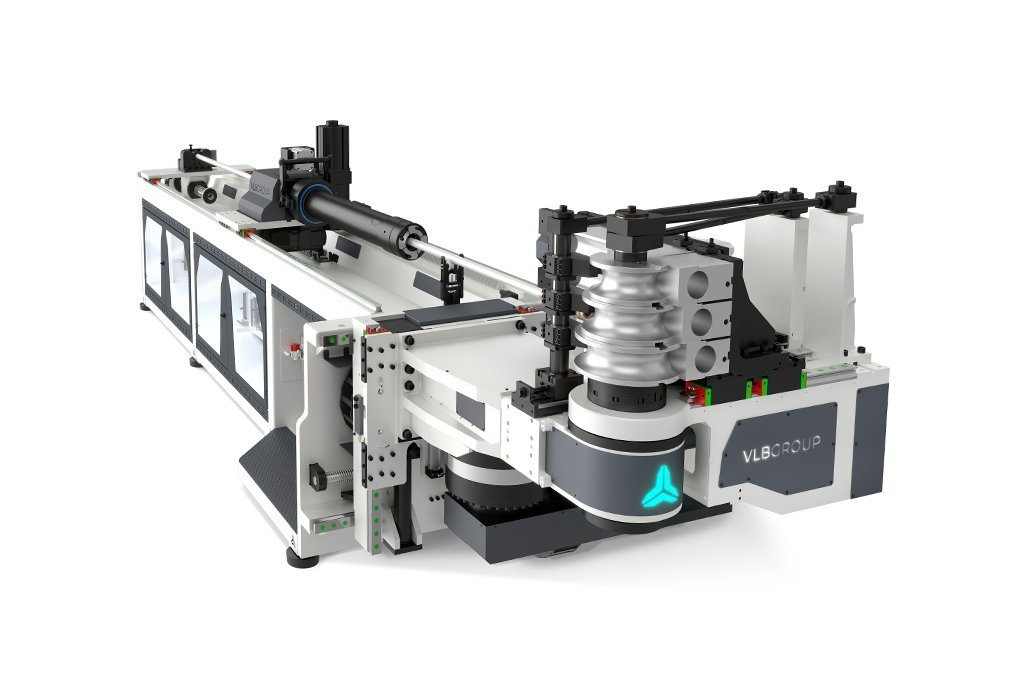

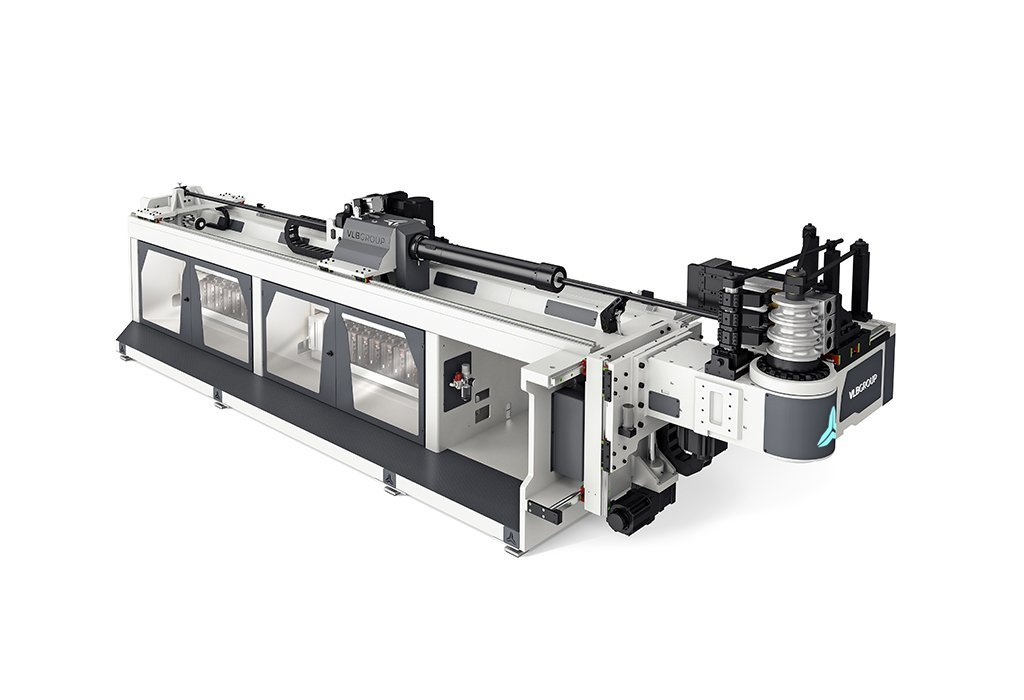

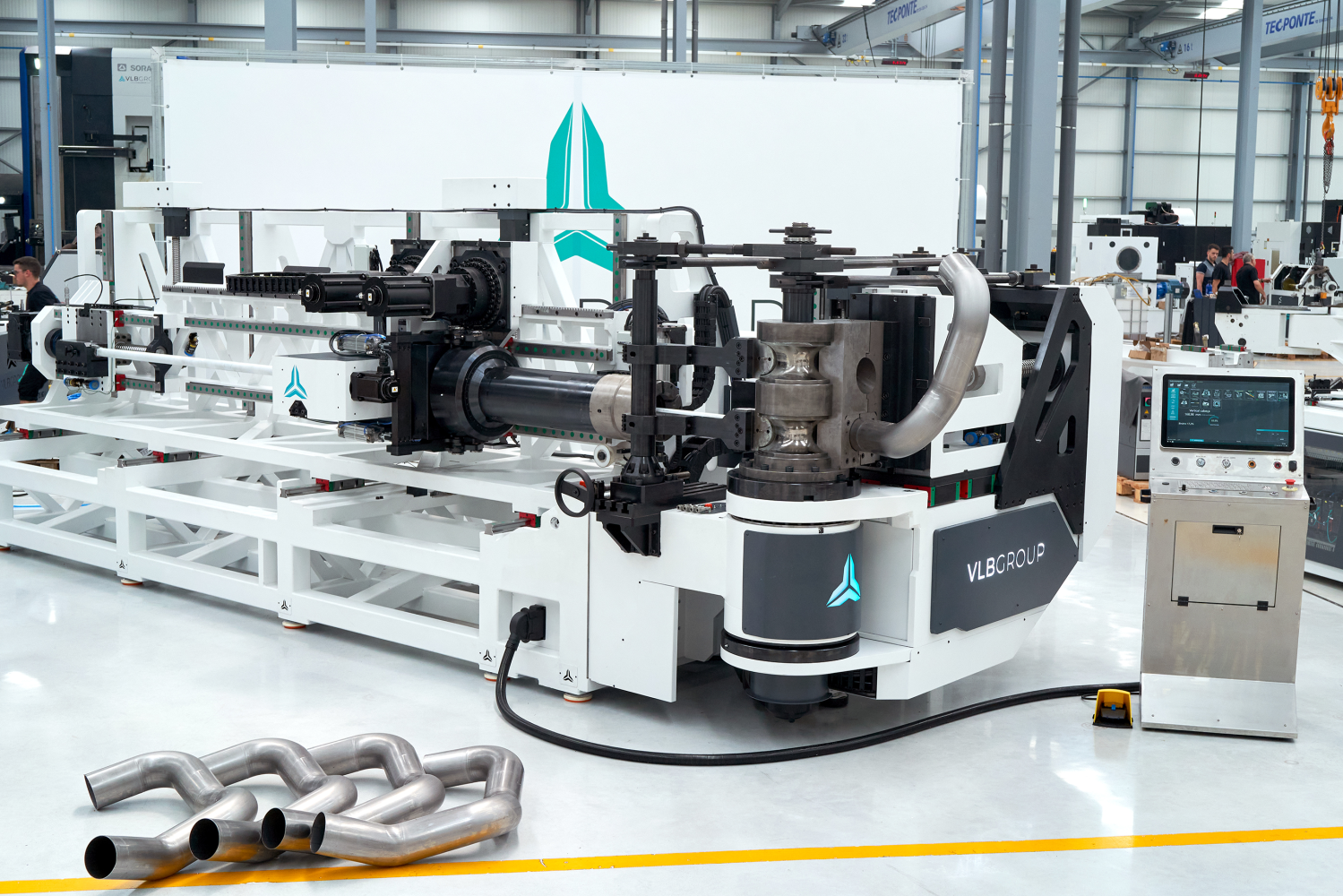

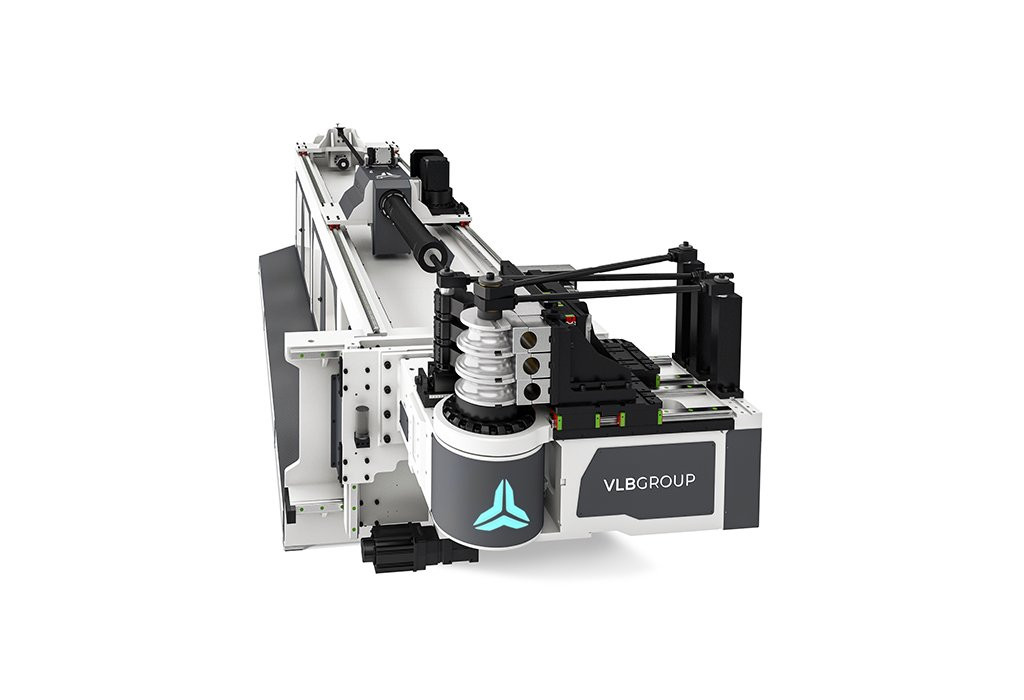

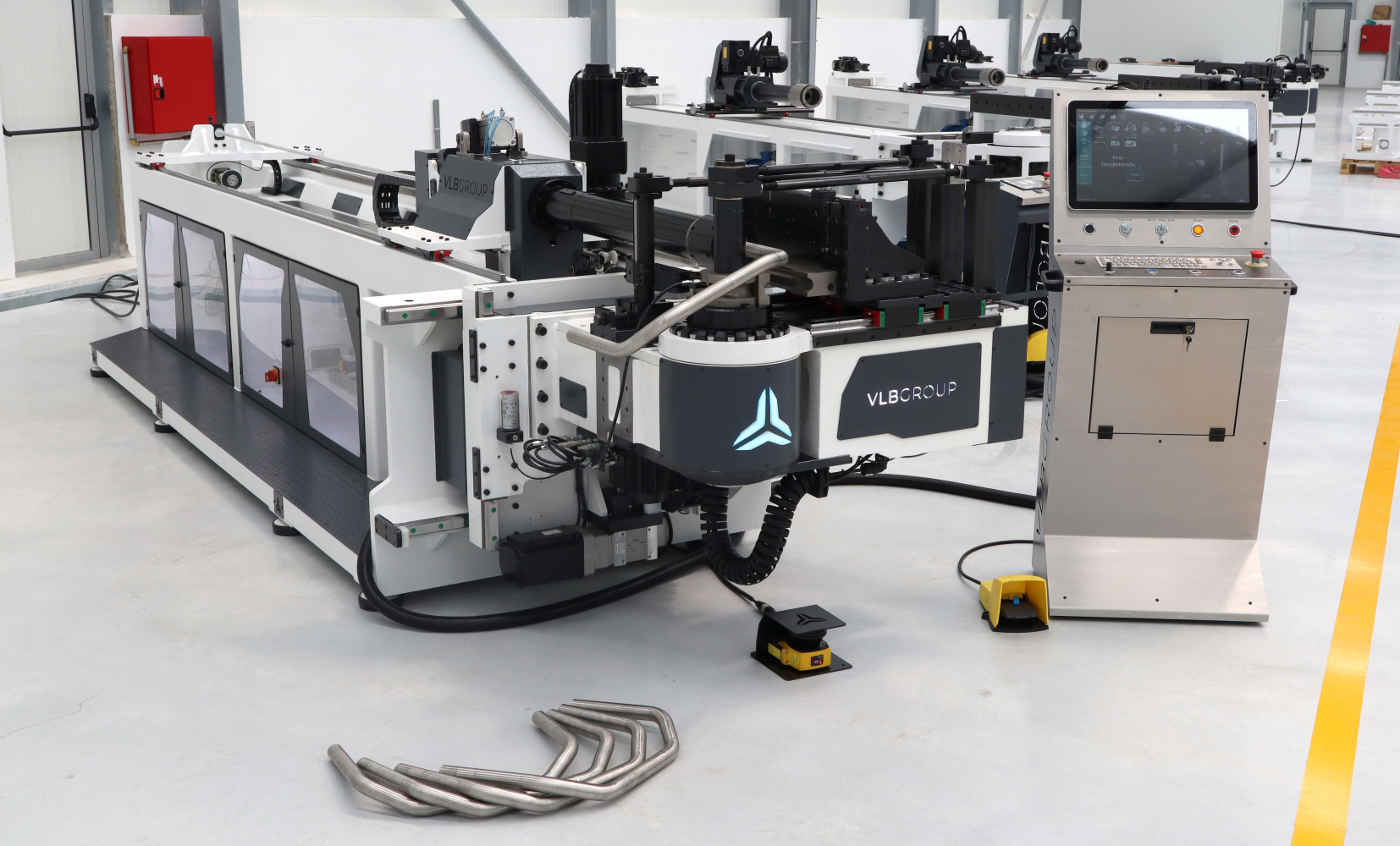

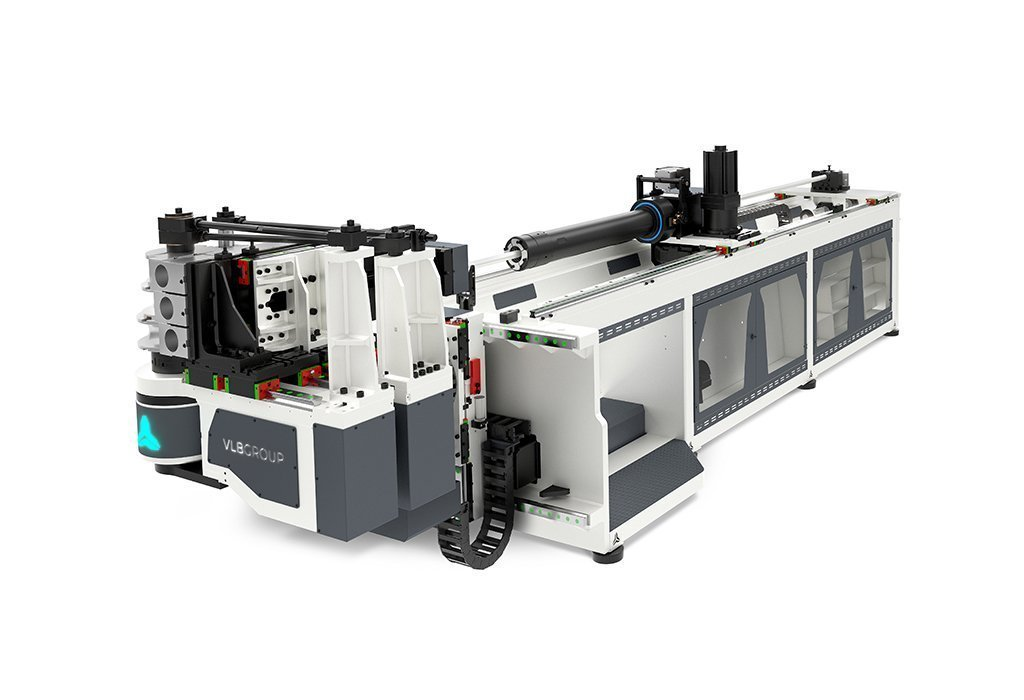

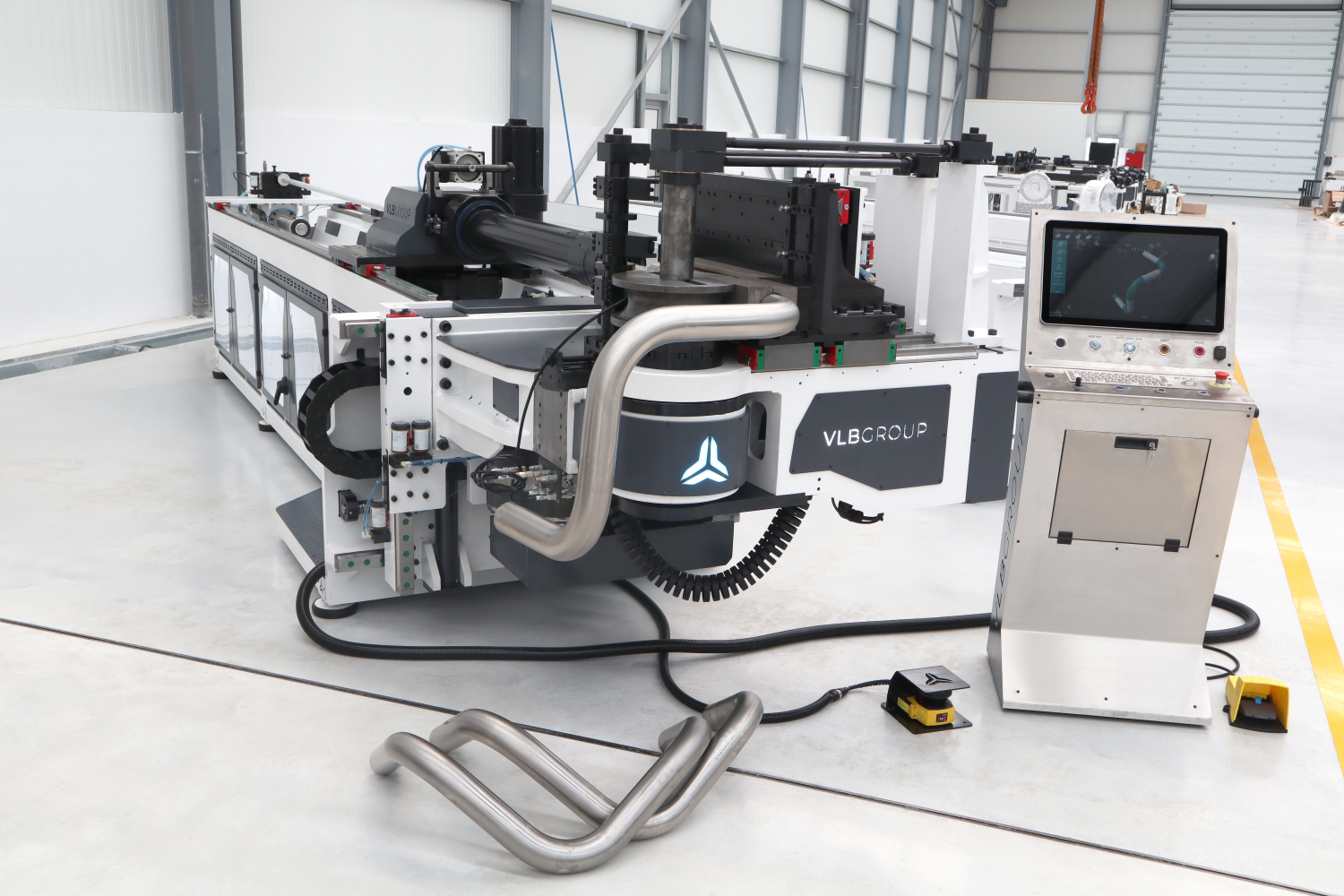

EB SERIES PIPE & TUBE BENDING MACHINES

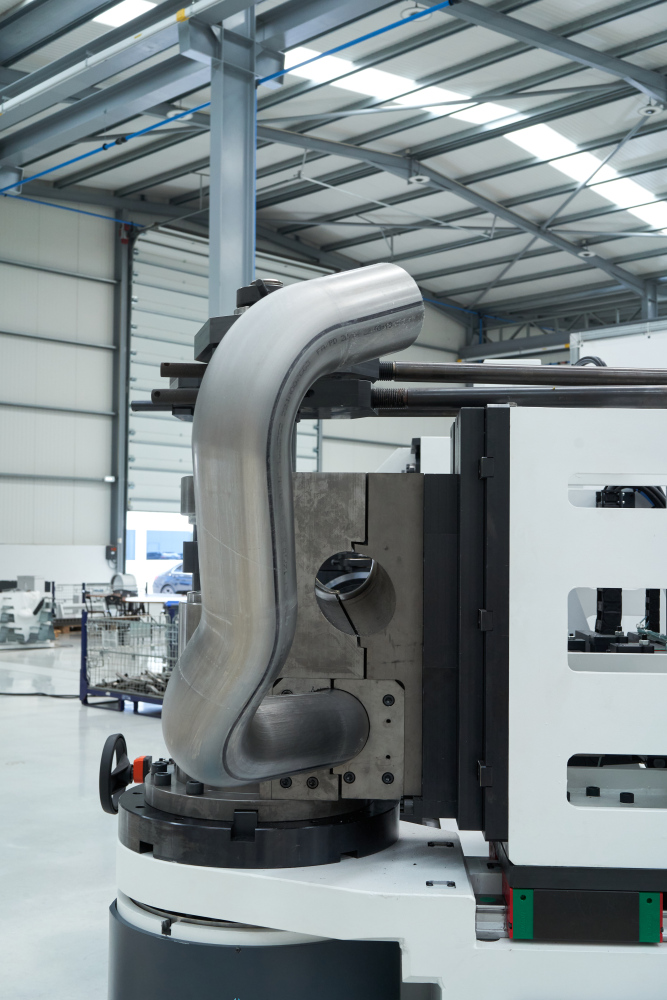

The EB-CNC series electric VLB pipe bending machines are equipped with the latest Electric Motion technology. With up to 9 fully electric drive axis, pipes with a diameter of 6mm -150mm can be bent. Equipped with a Booster system, it is possible to achieve radii up to 1D with reduced marks in the inner bend. The drives on all axes are optimized to reduce energy consumption and increase speed, making these pipe bending machines ideal for high-volume production batches that require high consistency.

Weld detectors, punching and cutting systems, or integration into production systems with loading and unloading facilities are options available for the EB series. VLB 3D software prepares these machines for INDUSTRY 4.0.

EB Series of pipe bending machines features:

• 100% electric drive of all 9 axes.

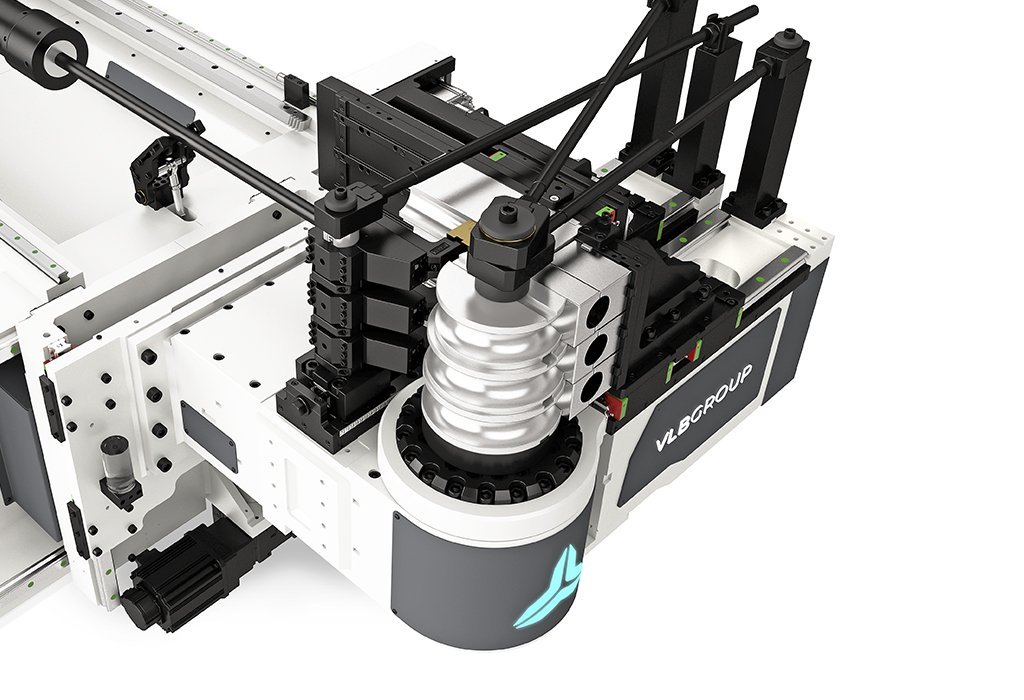

• Bending of multiple fixed and variable radii in the same cycle.

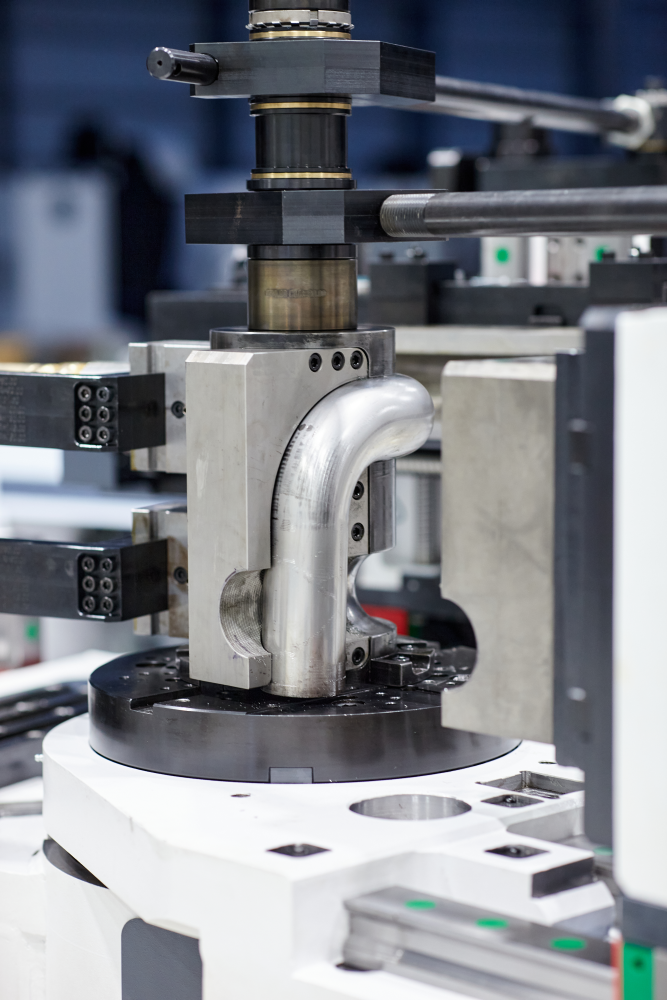

• Quick change of pipe bending tool, without having to readjust.
• High production speed and low power consumption.

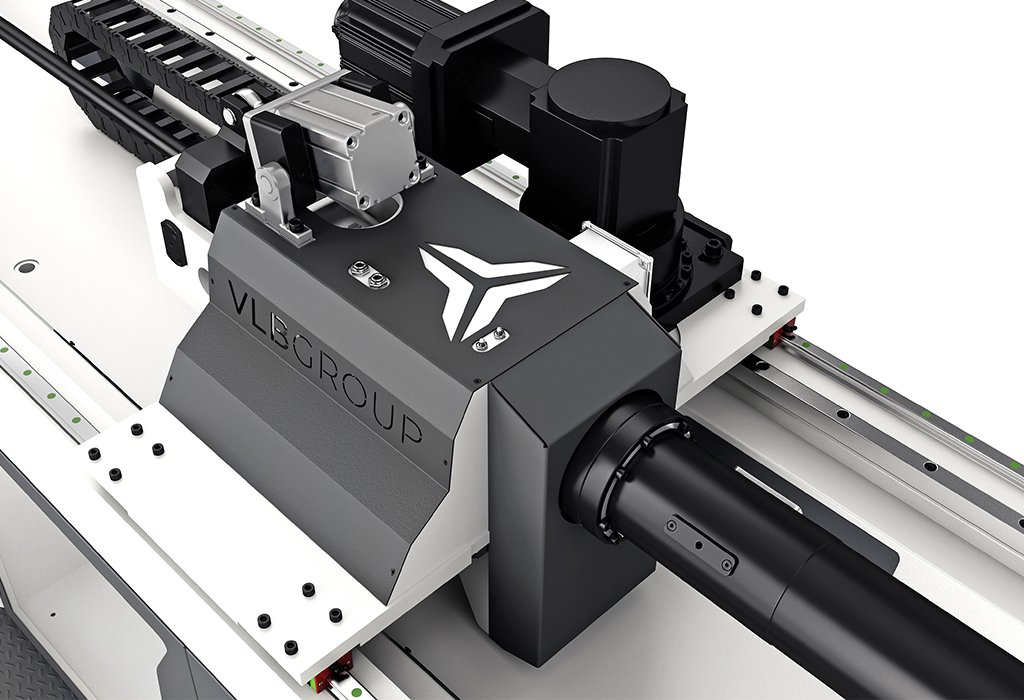

• Axis movements controlled by servo motors with absolute encoder feedback.
• Simplified synchronisation and optimisation of pipe bending cycles.
• Compact and ergonomic design guarantees operating comfort.
• Low maintenance costs with preventive intervention warnings.
• Sensors that monitor the elastic behaviour of the material, compensate for the pipe bending cycle and provide more precision and less waste.
• Bend left or right, with a shorter change time.

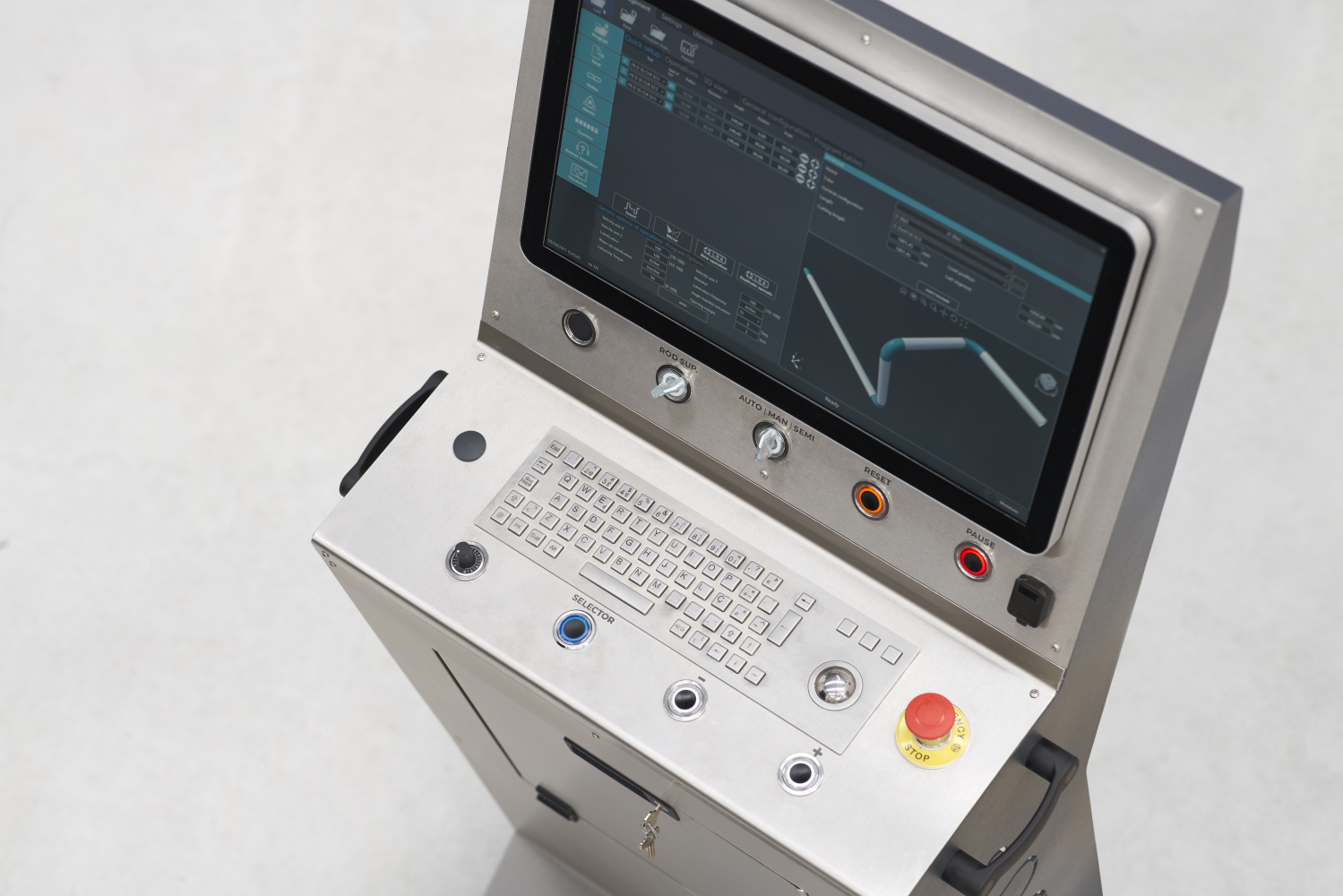

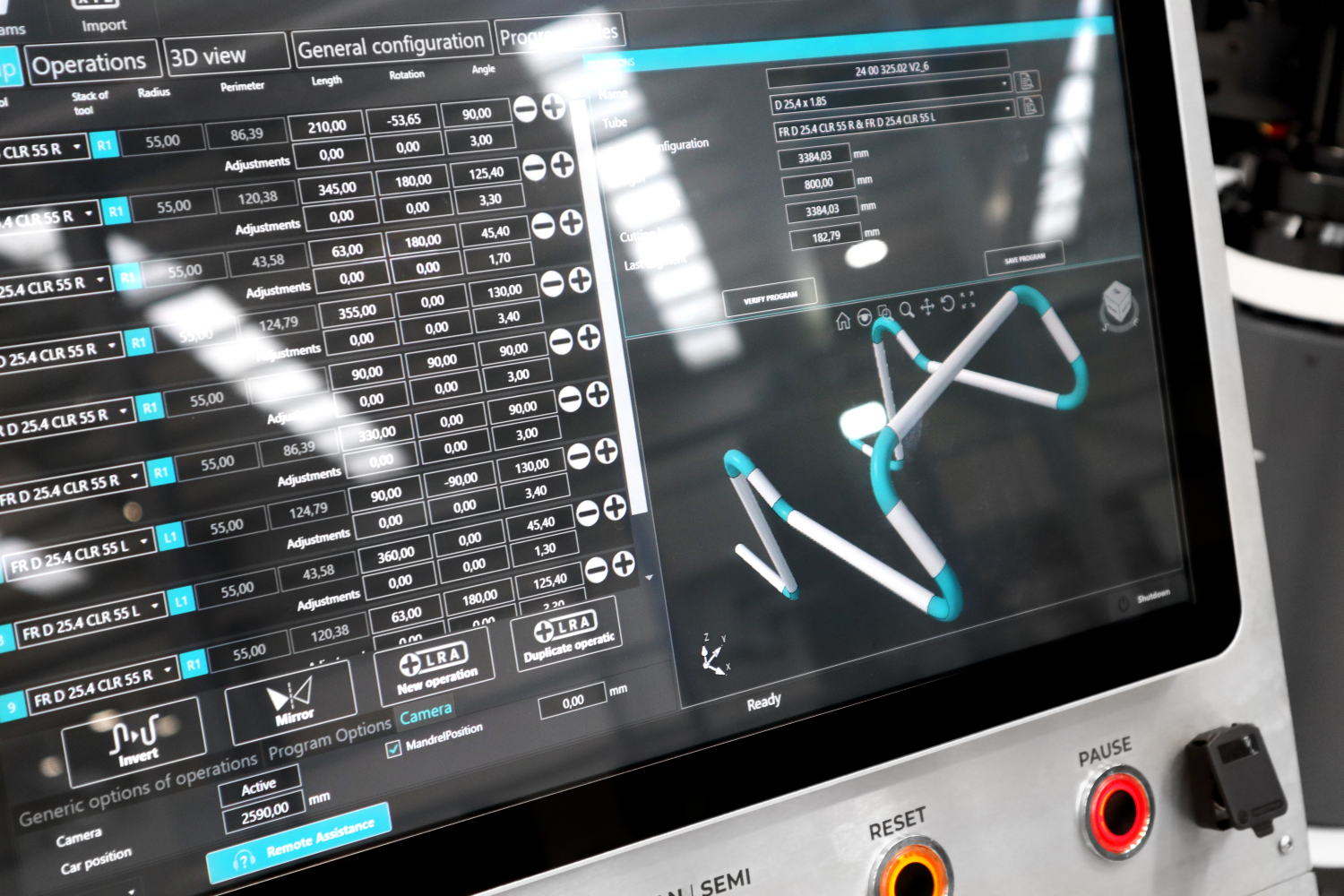

• Powerful and intuitive VLB 3D software with anti-collision simulation.
• Easily program or import files from the cloud or from the network.
