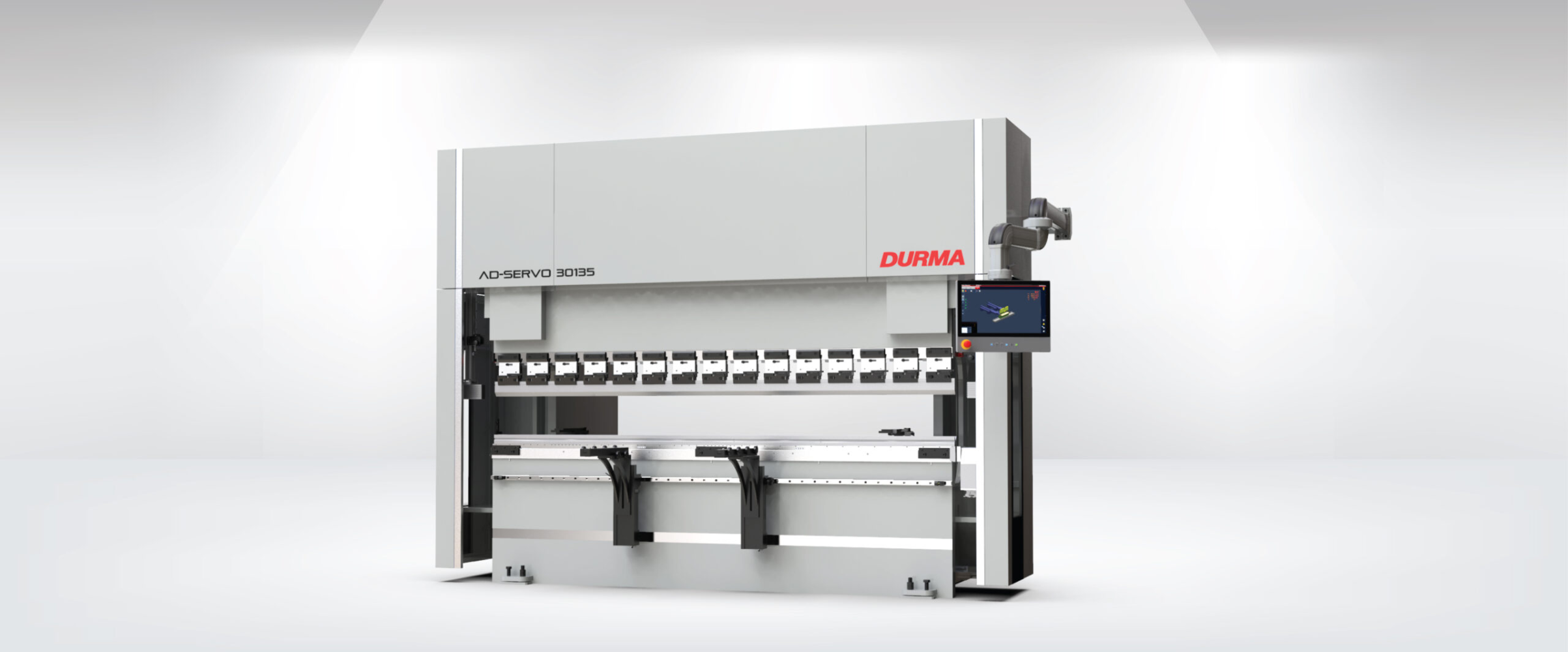

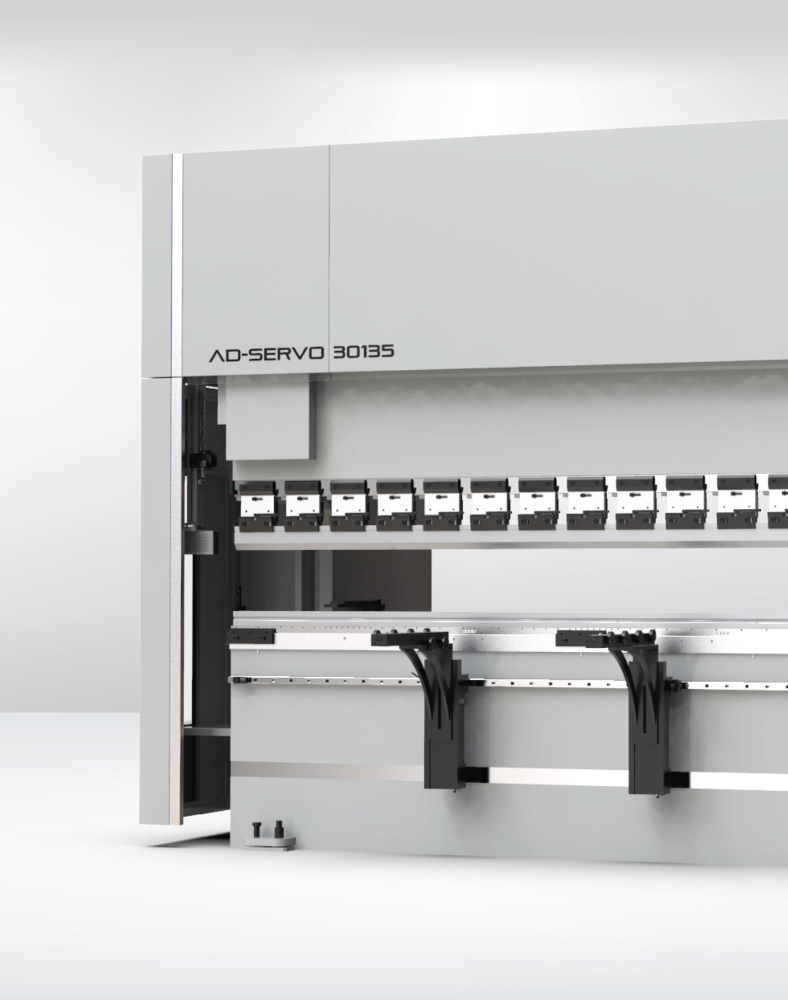

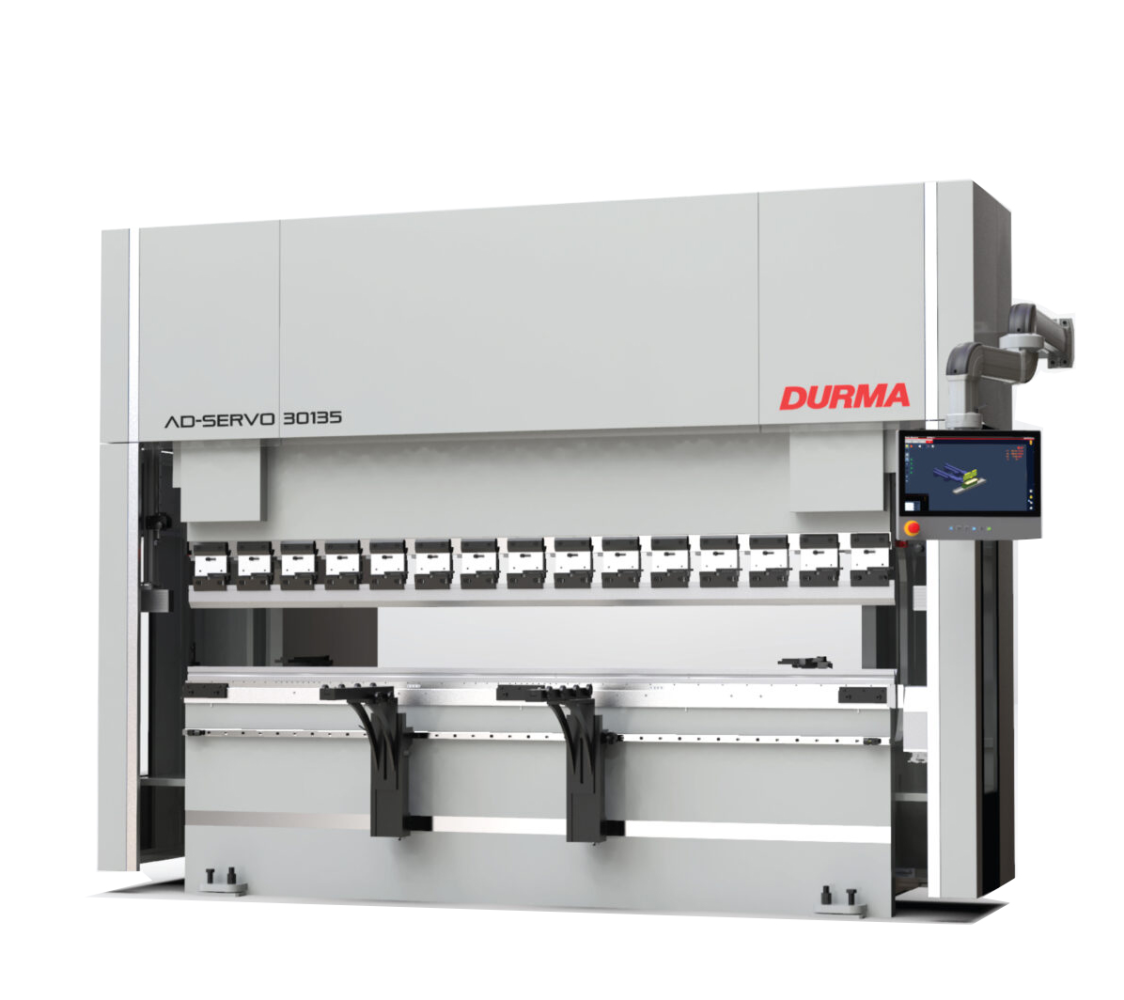

AD Servo Press Brake

Name: AD Servo Press Brake
Brand: Durma

Durma

The AD-SERVO Series Press Brakes are expertly engineered to enhance metal sheet bending precision and boost your productivity. With energy consumption playing a critical role in production costs, it's worth noting that standard machines typically account for 30% of these costs. The AD-SERVO Series, however, is designed with energy efficiency in mind, significantly reducing consumption and offering substantial savings for your business.

Additionally, the AD-SERVO Series incorporates advanced stress-relief technology, ensuring precise, consistent performance and long-term durability of the machine frames. This combination of precision, efficiency, and reliability makes the AD-SERVO Series an invaluable asset to your operations.

What are the advantages of Durma AD-SERVO Press Brake?

Durma AD-SERVO Press Brake has perfect precision. It will provide %60 more productivity with 72% less energy consumption. It is energy efficient. As a result of rising energy costs, we have produced AD-SERVO Press Brake with cost efficient speed-controlled drives. It is designed to be efficient and to ensure your effective and continued production. Moreover, it has variable-speed solutions, to ensure that your machine is efficient. It is designed to be fast. Manufactured for repeatability, Durma AD-SERVO Press Brake has an elegant design. It is designed to make less noise. Moreover, it will give you control of position, control of pressure, control of load pressure.

Download AD Servo Press Brake Specifications download icon

Download AD Servo Press Brake File 1 download icon

Technical Specifications

Standard Equipment

MODEL	Unit	25100	30100	30135	30175	30220	30320	37175	37220	40175	40220	40320	40400	40600	60220	60320	60400	60600
Bending force	Ton	100	100	135	175	220	320	175	220	175	220	320	400	600	220	320	400	600
A - Bending length	mm	2550	3050	3050	3050	3050	3050	3700	3700	4050	4050	4050	4050	4050	6050	6050	6050	6050
B - Distance between columns	mm	2200	2600	2600	2600	2600	2600	3100	3100	3600	3600	3600	3400	3400	5100	5100	5100	5100
C - Stroke	mm	265	265	265	265	265	365	265	265	265	265	365	365	365	265	365	365	365
D - Daylight	mm	530	530	530	530	530	630	530	530	530	530	630	630	700	530	630	630	700
E – Throat depth	mm	450	450	450	450	450	450	450	450	450	450	450	510	510	450	450	510	510
F – Table height	mm	900	900	900	900	900	900	900	900	900	900	900	1050	990	1050	1100	1100	990
G – Table width (Narrow/wide)	mm	104	104	104	104/180	104/180	104/240	104/240	104/240	104/240	104/240	154/300	154/300	154/300	104/240	154/300	154/300	154/300
Y Rapid speed	mm/sec	200	200	200	200	200	160	200	200	200	200	160	150	80	200	160	150	80
Y Working speed	mm/sec	10	10	10	10	12	10	10	12	10	12	10	9	6.5	12	10	9	6.5
Y Return speed	mm/sec	200	200	200	200	180	160	200	180	200	180	160	150	80	180	160	150	80
Y Axes precision		0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01	0.01
X Axes Working speed	Mm/sec	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	500	350
X Axes precision		0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05	0.05
X Axes Dimensions
650	mm	S	S	S	S	S	S	S	S	S	S	S	-	--	-	-	-	-
750	mm	-	-	-	-	-	-	-	-	-	-	-	S	S	S	S	S	S
1000	mm	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O	O
R Axes working speed	Mm/sec	350	350	350	350	350	350	350	350	350	350	350	350	300	350	350	350	300
R Axes working distance	mm	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250	250
R Axes precision		0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Z Axes working speed	Mm/sec	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
Z Axes working distance	mm	1580	1990	1990	1990	1990	1990	2375	2375	2910	2910	2910	2910	2910	4400	4400	4400	4400
Motor power	kw	4x2	4x2	4x2	4x2	11x2	11x2	4x2	11x2	4x2	11x2	11x2	11x2	11x2	11x2	11x2	11x2	11x2
Consumption ratio	Kw/h	2.1	5.2	2.65	3.38	5.2	7.2	3.38	5.2	3.38	5.2	7.2	7.2	11.8	5.2	7.2	7.2	11.8
Oil tank capacity	Litre	75	75	75	75	80x2	80x2	75	80x2	75	80x2	80x2	80x2	140x2	80x2	80x2	80x2	140x2
L - Length	mm	3800	4200	4200	4250	4250	4300	4950	4950	5250	5250	5300	5750	5750	7500	7500	7500	7600
W - Width	mm	1670	1670	1680	1700	1770	1820	1700	1820	1700	1770	1910	2110	2500	1770	1910	2110	2650
H - Height	mm	2850	2850	2850	2850	3000	3330	3000	3000	2850	3000	3330	3450	4000	3350	3350	3810	3950
Weight (approx.)	Kg	7800	8500	9580	10900	12600	17100	11750	14440	12780	14750	20000	27780	40500	20800	29000	34600	52500

All specifications are subject to change without prior notice. See above for dimensions illustration.

Servomotor
Hydromotor-pump (4-quadr. oper.)
Servo controller Indra-Drive C Software
Bell housing and coupling
Power unit (Oil tank, accessories)
Valve block
Prefill valve
Cylinder

Durma AD-SERVO press brake will provide:

High sensitivity
Stress relieved steel construction body
Long life Mono Block Frame
High accuracy linear scales
