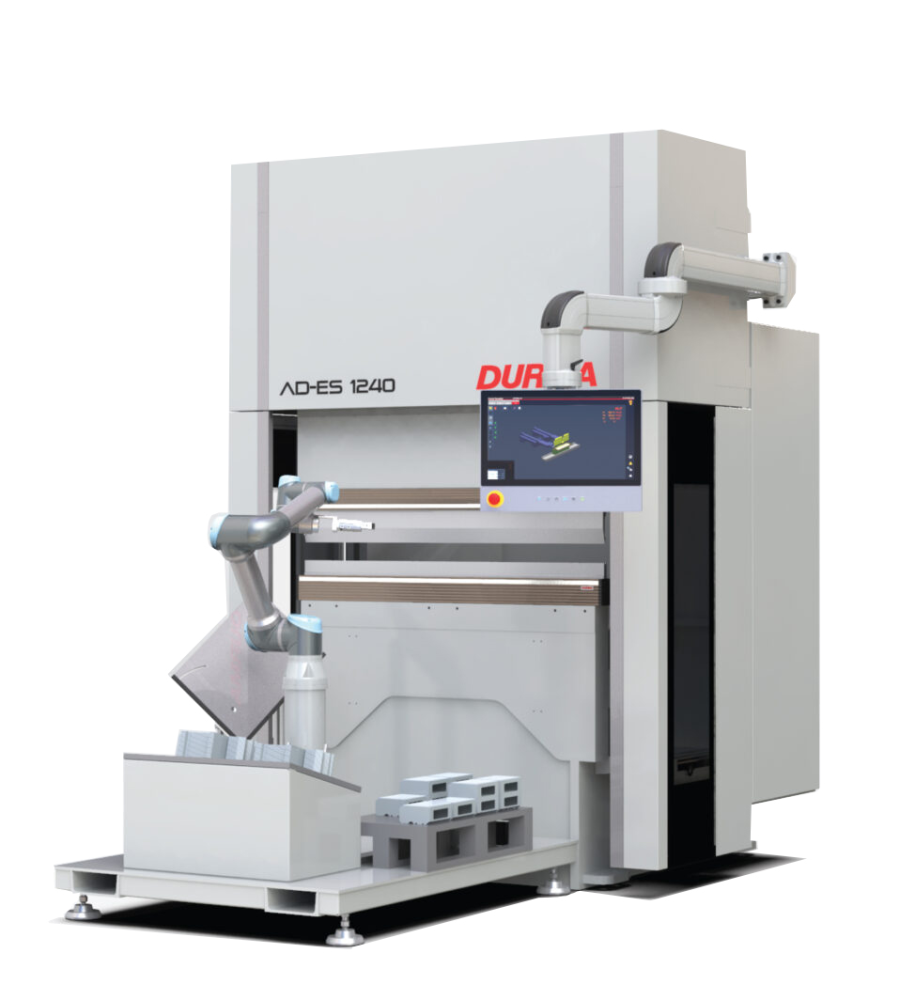

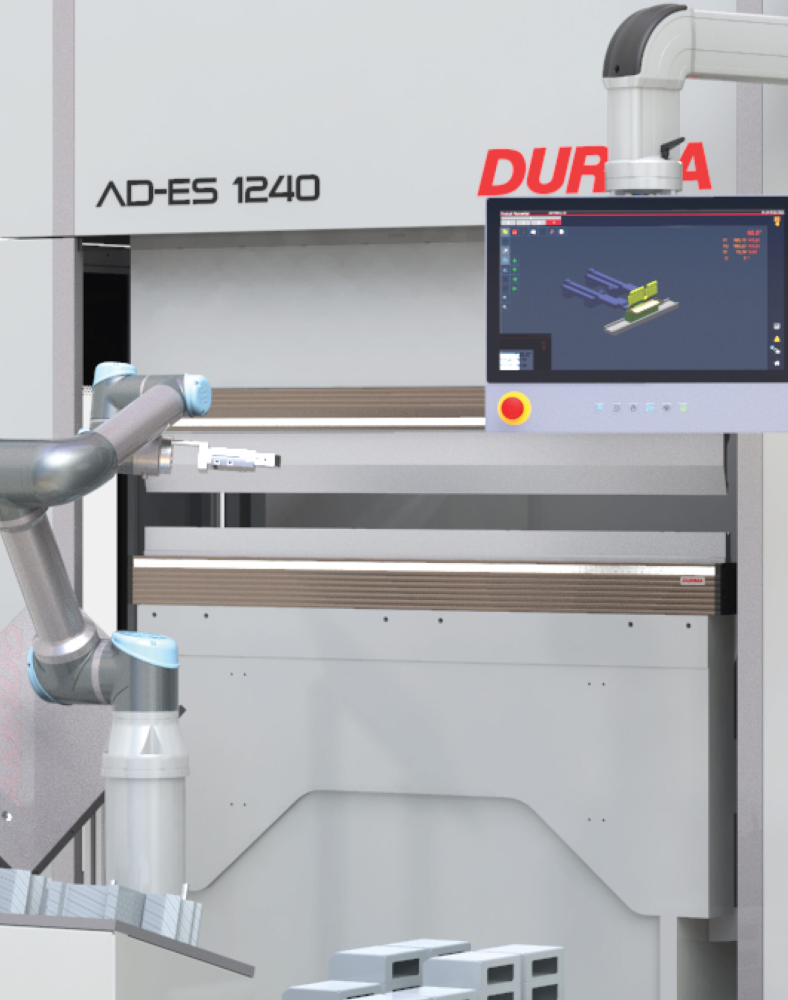

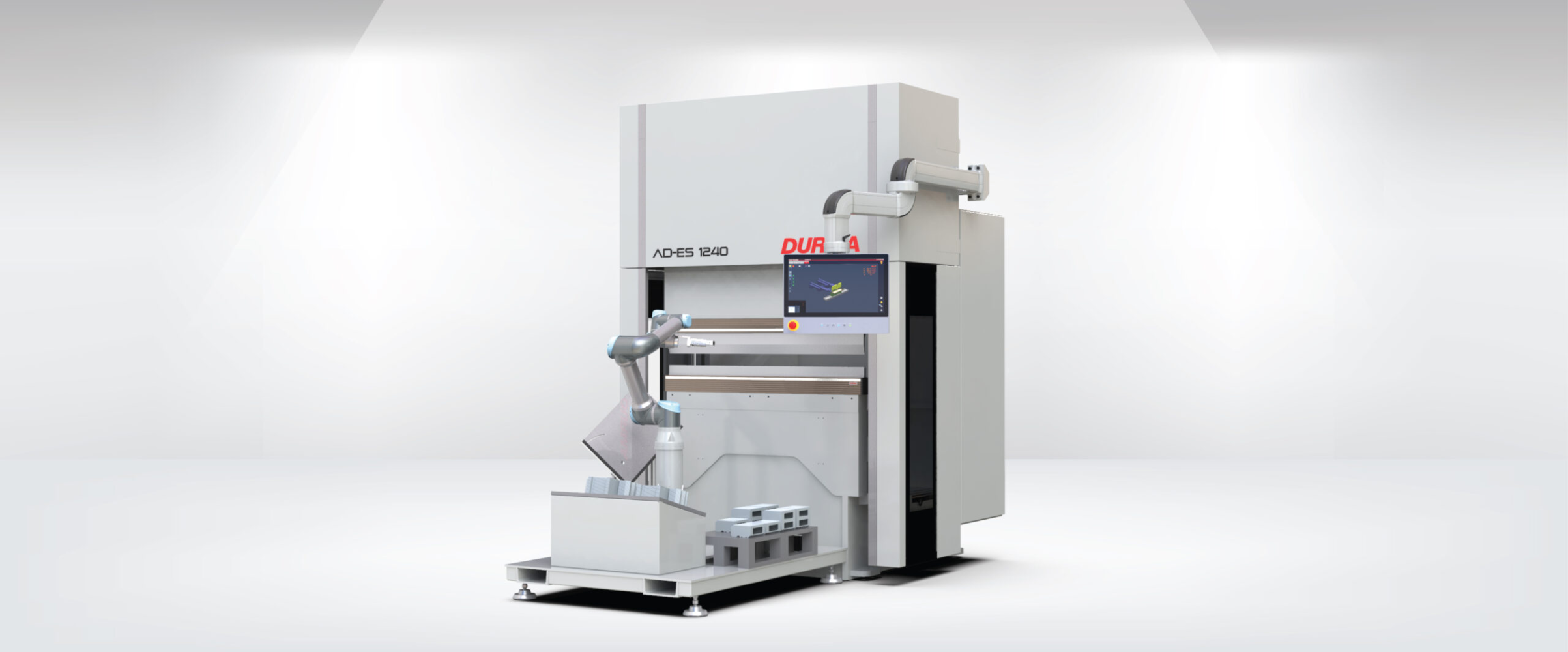

Press brakes are used to bend metal sheets. The Eco-Friendly Durma AD-ES Electric Press Brake can be produced in different sizes. They range from 1250 mm table width to 2500 table width. We can customise the machine according to the size requests of our customers. Different sizes are also possible according to the customer requests. Machine frame is made by welding. All waste is prevented through stress-relieving and efficient processing technologies. The reducer drive system, precise screw shaft and high torque strength bearing cylinder ensures high precision bending results of the AD-ES Electric Press Brake.

What Are the Advantages of Durma AD-ES Electric Press Brake?

With an easy to use control unit, stable body structure, perfect design, low operating cost, different tool usage options, and maximum safety standards, Durma press brakes are the best in the world in their segment. Durma press brakes are fast, efficient and modern. Durma AD-ES Electric Press Brakes are equipped with: Aluminium back gauge systems, front sheet supports, precise Hydraulic system, Durma licensed upper table sliding system, Euro type punch holders, high speed and stroke Y1-Y2 bending axis and CE level safety standards.

The Durma AD-ES Electric Press Brake is designed to be efficient and eco-friendly. It will provide 40% Less energy consumption and 17% more productivity.  The AD-ES Electrical Press Brake has perfect precision, high capacity elegant design. It is specifically manufactured to be low energy consumption. Its cutting-edge technology and equipment have a simpler drive group. Moreover, having less components allows easy and fast assembly. Its design is easy to use and easy to maintain. It has a hydraulic oil-free drive system.



Technical Specifications
Standard Equipment
Robotcell

MODEL

Unit

AD-ES 1240

AD-ES 2040

Bending force

Ton

40

A - Distance between columns

mm

1050

1700

B - Bending length

mm

1250

2050

C - Stroke

mm

200

Daylight

mm

440

Throat depth

mm

250

350

Working height

mm

1000

Rapid speed

mm/sec

115

Bending speed

mm/sec

10-20*

Return speed

mm/sec

115

Back gauge X axis length

mm

650

Back gauge R axis length

mm

250

L - Length

mm

2150

2870

W - Width

mm

1625

H - Height

mm

2800

Weight (approx.)

Kg

3900

4400

*According to CE norm, the bending speed should be maximum 10 mm / sec except for robotic use. See overleaf for robotic technical details.

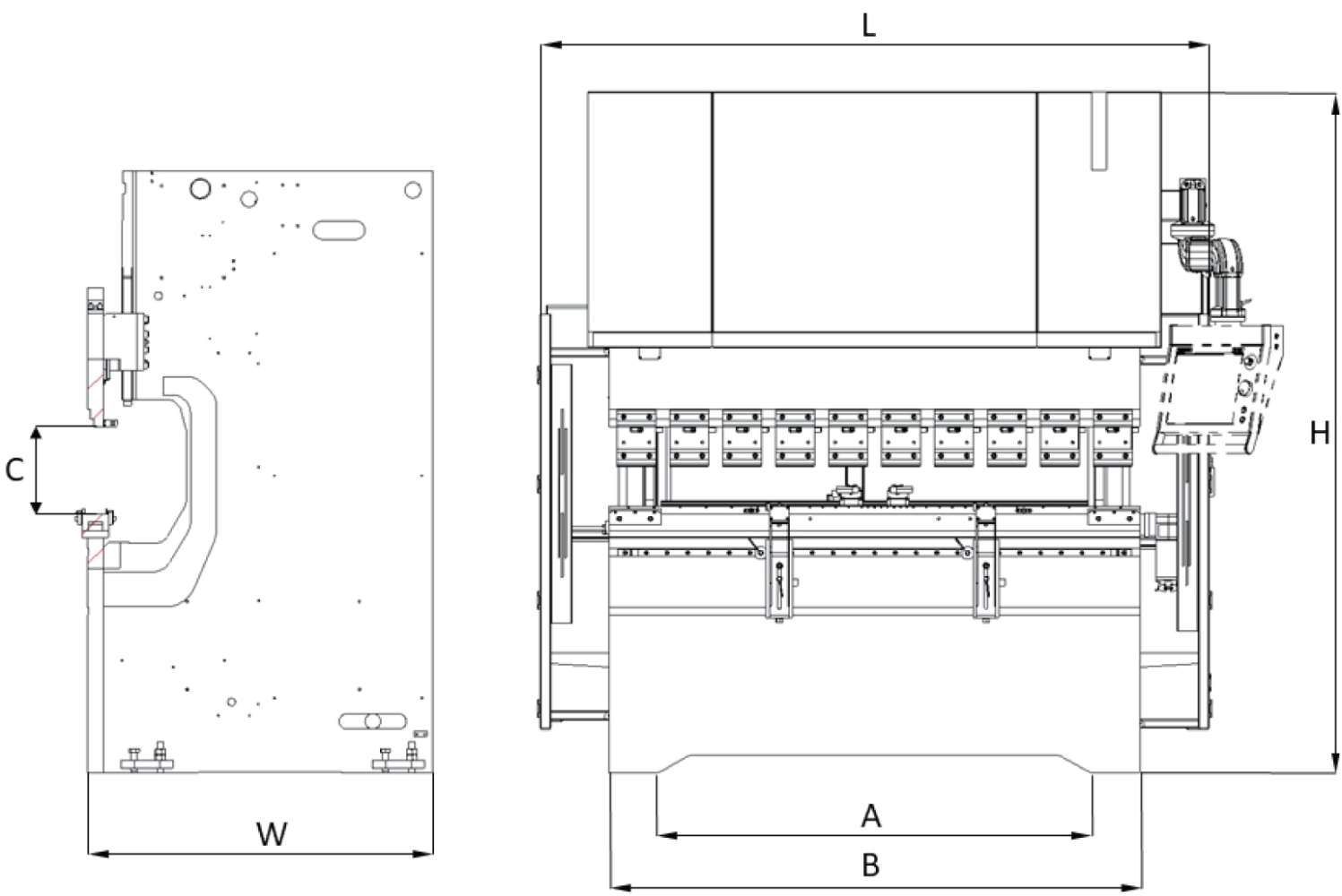

All specifications are subject to change without prior notice. See above for dimensions illustration.

  • Precision belt-pulley system,
  • Upper table suitable for EURO / Wila type tools,
  • Robust body structure with long life and high performance,
  • Electric Panels creating a safer working environment,
  • Servo motors providing high speed and high precision,
  • Ball screw and nut connection providing excellent power and motion transmission,
  • Roust back support system and rigid aluminium body AP1-AP2, system with high mobility and aluminium miter,
  • CE Norm Safety Standards.

MODEL

Unit

ROBOTCELL

Air pressure

bar

5 - 7

Voltage

Volt

380 - 480

Power supply

Kw

1.5

Robot maximum lifting force

Kg

12

R-cell length

mm

1250

R-cell width

mm

1950

R-cell height

mm

2150

R-cell weight

Kg

1100
