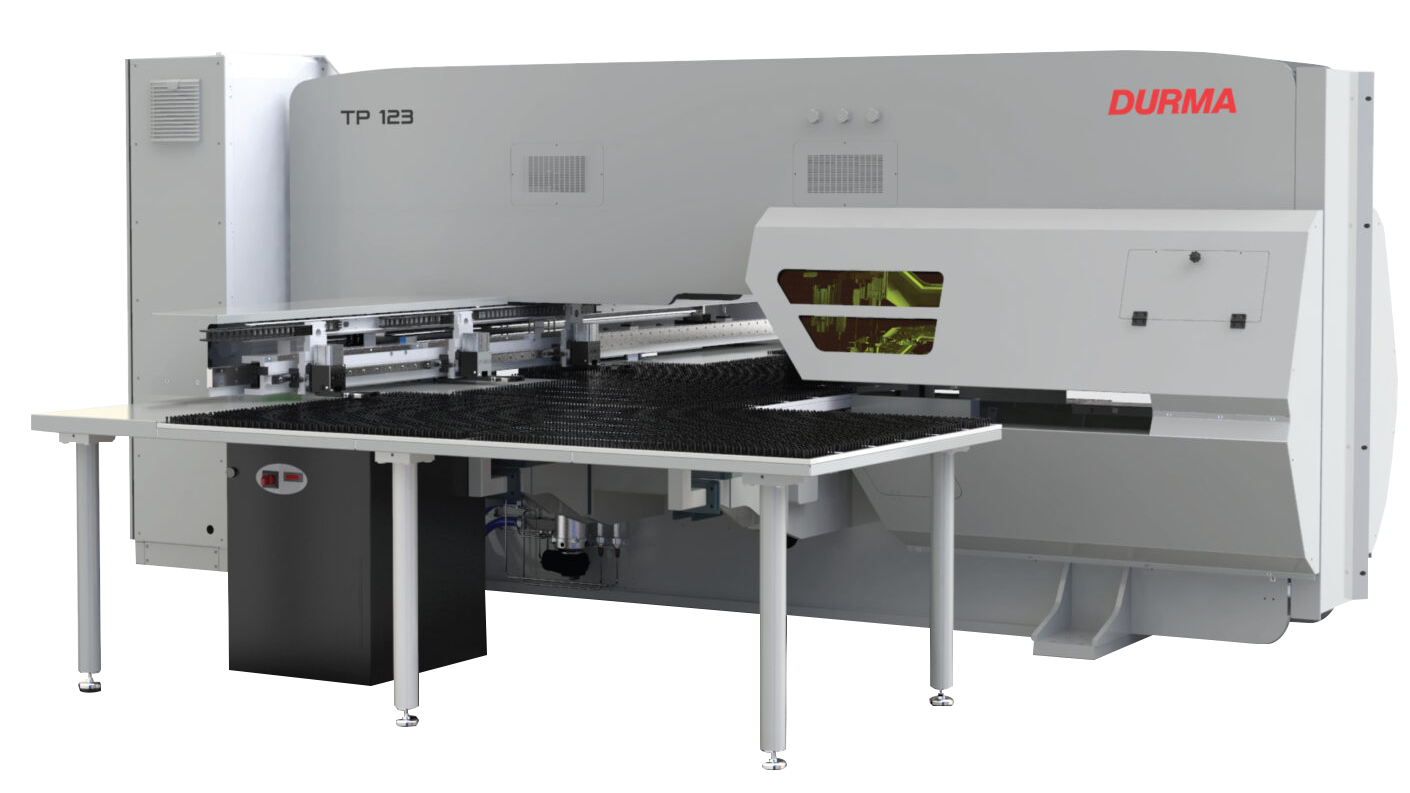

Name: TP Hydraulic Punch Press
Brand: Durma

Durma

A punch press is a machine that is used to apply pressure to a sheet metal. They can be used for punching, notching, piercing, slotting, and perforating. Punch presses are used for mass-producing various metal items. They are used to form shapes out of raw material.

Durma TP Hydraulic Punch Presses provide cutting-edge technology and precision in shaping. With features like its precise and fast turret, improved hydraulics and automatic index stations, Durma TP Hydraulic Punch Press produce perfect results. Durma TP Hydraulic Punch Press provide convenience to your business with a moving table, part-unloading chamber, automatic clamps, Cad/Cam software and accurate control system. Durma TP Hydraulic Punch Presses will increase your productivity, occupational safety and ensure user safety. Moreover, the automation systems increase efficiency by minimizing lost-time in manufacturing.

What Are the Advantages of the Durma TP Hydraulic Punch Press?

Durma TP Hydraulic Punch Presses are excellent for small, medium and large format sheet processing. They are equipped with punching, forming, tapping, and wheel technology capabilities. They have a Stress relieved O frame. Their flexible turret configurations eliminate tool setups. They have one of the best controllers the market has to offer. They offer powerful control with user friendly CAD-CAM Software. Moreover, they have auto lubrication of moving parts, which will save you time and manpower.

Programmable sheet clamping system decreases set-up times and scrap ratio. Automation can be easily integrated for efficient and lean operations while also Increasing operator safety and decreasing operator fatigue.

The punching head stroke rates of 1200 strokes per minute during punching and 3200 per minute during marking. Also, it can be formed at punching speed. The machine control adjusts stroke travel speed and position.

With its dynamic design, it is possible to obtain speeds of 116 m/min in X axis, 80 m/min in Y axis and 140 m/min simultaneously. Moreover, high acceleration (1,5 g) is possible across the whole working range without any restriction.

Download TP Hydraulic Punch Press Specifications download icon

Download TP Hydraulic Punch Press File 1 download icon

Technical Specifications 1

Technical Specifications 2

Technical Specifications 3

Technology

TP SERIES	UNIT	TP9	TP123	TPL93	TP SERVO
Maximum Tonnage	Ton	20**	30**	30**	20**
Frame Type	-	O frame	O frame	O frame	O frame
X Axis Movement	mm	2000 + R	2500 + R	3000 + R	2500 + R
Y Axis Movement with Single Tool	mm	1250	1250	1500	1250
Automatic Repositioning Range*	mm	10000*	10000*	10000*	10000*
Speed of Y axis	m/mm	70	80	60	80
Speed of X Axis	m/mm	90	116	70	116
Lateral speed Y + X	m/mm	114	140	120	140
Max. Hite Rate (1mm pitch, 1mm thickness)	1/min	1100	1200	1200	535
Max. Hite Rate (25mm pitch, 1mm thickness)	1/min	375	425	325	325
Max. Hite Rate: Marking	1/min	2800	3200	2800	820
Main Cylinder Stroke	mm	40	40	40	40
Maximum Punching Stroke	mm	25	25	25	25
Max. Cutting Thickness (Fixed Station)	Mild Steel Stainless Steel	6 3	6 3	6 3	6 3
Max. Cutting Thickness (Index Station)	Mild Steel Stainless Steel	3 1,5	3 1,5	3 1,5	3 1,5
Positioning Accuracy	mm	± 0,1	± 0,1	± 0,1	± 0,1
Repeatable Accuracy	mm	± 0,05	± 0,05	± 0,05	± 0,05
Turret Rotation Speed	rpm	30	22	22	22
Auto Index Rotational Speed	rpm	150	150	150	150
Max. Weight of Sheet	kg	100	120	200	120
Hard Disk	Gbyte	80	80	80	80
RAM	Gb SDRAM	4	4	4	4
Network System	-	Windows 7	Windows 7	Windows 7	Windows 7
Interactive Flat Panel	Inch	19”	19”	19”	19”
USB	-	2	2	2	2
Ethernet	-	10/100	10/100	10/100	10/100

All specifications are subject to change without prior notice. See above for dimensions illustration.

TP SERIES	UNIT	TP9	TP123	TPL93	TP SERVO
Height (H)	mm	2310	2310	2310	2135
Width (without light barrier) (W)	mm	4200	5360	6300	5260
Width (with light barrier)	mm	6200	7360	8300	6260
Length (without light barrier) (L)	mm	5600	5750	6650	5260
Length (with light barrier)	mm	6600	6800	7650	6260
Table Height	mm	940	940	940	940
Weight approx..	kg	11000	12960	18250	14000
Hydraulic System Motor	Kw	7.5	15	15	-
Oil Tank	lt	180	240	180	-
Air Pressure	bar	6	6	6	6
Number of Clamps	Pcs.	2	3	4	3
Holding Force of Clamps	-	1000	1000	1000	1000
Table Type		Brush	Brush	Brush	Brush
Energy Consumption	Kw/h	7,5	15	15	6,21

TP SERIES	UNIT	TP9	TP123	TPL93	TP SERVO
A – fix 0.8-12.7mm	Qty	11	11	11	11
B – fix 12.8-31.7mm	pcs	10	11	11	11
C – fix 31.8-50.8 mm	pcs	1	2	2	2
D – fix 50.9-88.9 mm	pcs	2	1	1	1
B – indeks 12.8-31.7 mm	pcs	2	-	-	-
C – indeks 31.8-50.8 mm	pcs	1	-	-	-
D – indeks 50.9-88.9 mm	pcs	-	3	3	3

Durma TP Hydraulic Punch Press technology is designed to allow perfect and high-quality drilling operations. Durma TP Punch Presses are developed with high-tech standards and offer you exact solutions.

TP Hydraulic Punch Press has an efficient design and a strong body for perfect machining. These presses represent the combination of economy and excellent process performance.

Durma TP Hydraulic Punch Press adds value to your business by offering solutions suitable for your needs with standard and optional equipment options. With its high technology features, high impact, high precision and high-performance criteria, the Durma TP Hydraulic Punch Press is user friendly.
