Convert Single-Turret Turning Programs to Multi-Turret Programs With Ease

With variables such as material type, workholding, tooling, holder type, tool path and spindle speeds to contend with – programming can be a daunting task. If you have a multi-turret machine, this complexity multiplies….but not if you have a Nakamura-Tome machine.

With the ‘Drop Converter’ – our specialised programming support software, operators can cruise through such challenges. Drop Converter can transform a program designed for a single-turret machine with two spindles into a program suitable for a multi-turret machine.

From a single-turret machine to the SC-100X2

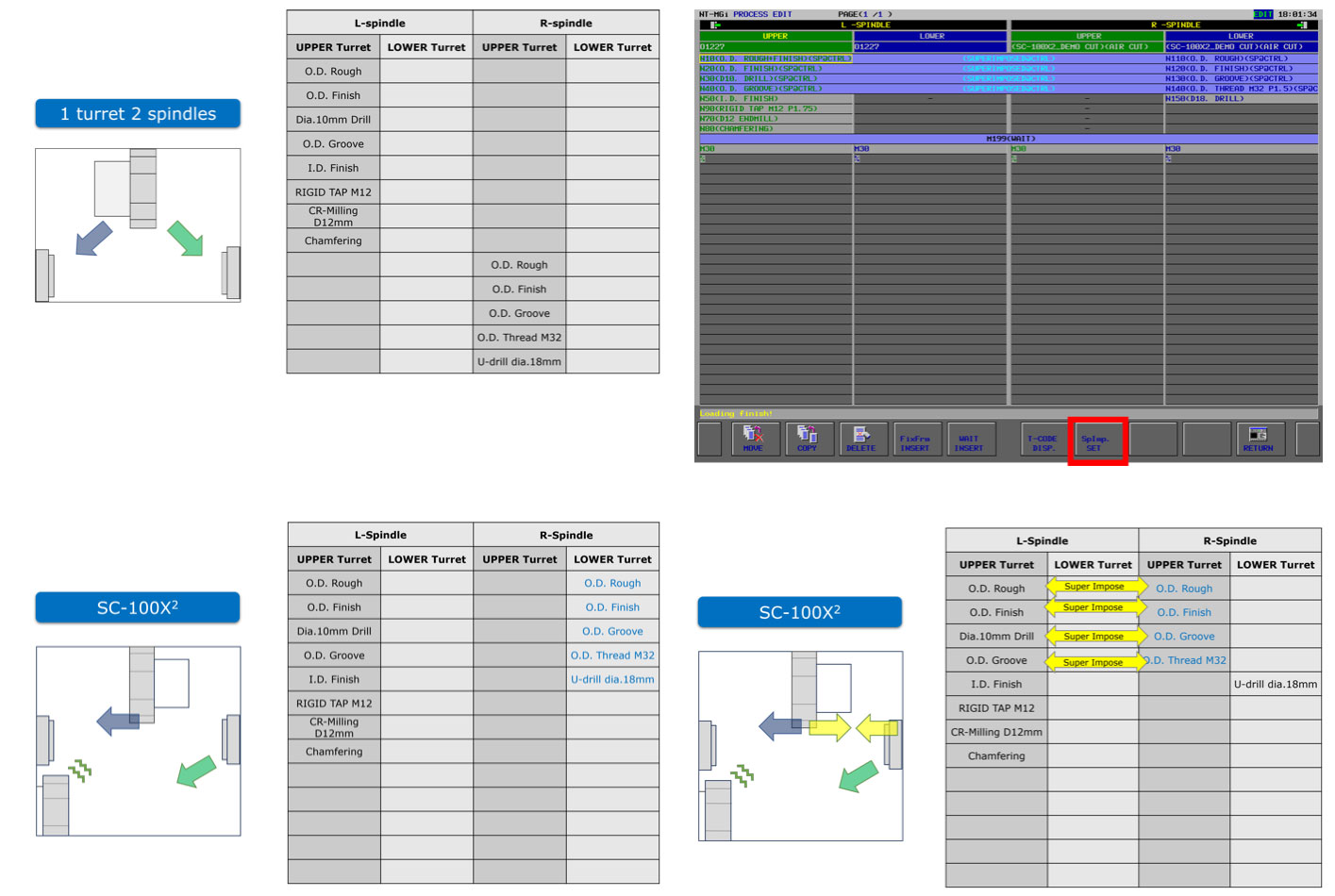

The SC-100X2 is an entry model to the WT and WY series, featuring a movable upper turret and a stationary lower turret. Below is an example of a single-turret program where all operations are executed by the upper turret. To adapt this program for the SC-100X2, the operations for the R spindle, initially done by the upper turret are moved to the lower turret.

This can be carried out using the ‘Process Edit’ function screen, which features a user-friendly interface. Machine operators can copy or move a specific programme to a designated turret position on the display.

The SC-100X2 can also be used for superimposed machining. The Drop Converter allows for easy program creation by simply selecting the two processes for superimposed machining.

From a single-turret machine to NTY3 series

The NTY3-100, NTY3-100V, NTY3-150, and NTY3-250 models are three-turret, two-spindle machines. With a capacity to hold a maximum of 72 tools, they embody permanent tooling, which minimises setups and facilitates faster cycle times.

Similar to the operation of the SC-100X2 or WT/WY series, the Drop Converter effortlessly transforms a single-turret two-spindle program into a three-turret two-spindle program.

Automatic conversion prevents human error

Traditionally, operators may manually adjust G-codes and M-codes or correct each reversal individually when creating a multi-turret program, potentially leading to human error. Now, the Drop Converter automates these adjustments to provide safer modifications.

As a result, this function relieves operators’ anxiety and reduces the burden of programming for multitasking machines.

Contact your local ETG Regional Sales Manager to find out more or call us on 01926 818 418.
