BASELINE FZ08S - 5 AXIS

Name: BASELINE FZ08S - 5 AXIS
Brand: Chiron

Chiron

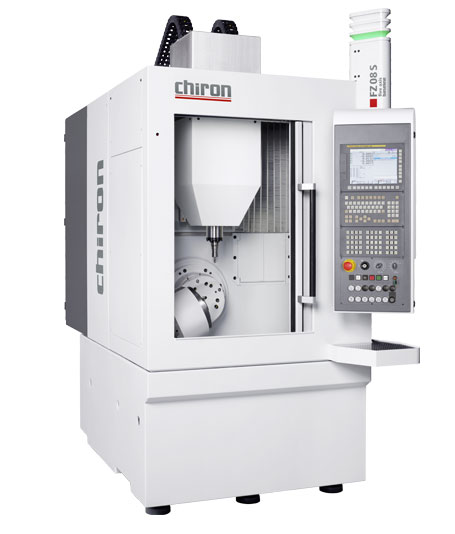

The compact machining centre with 5 axes

Compact, fast & precise

The FZ 08 S five axis baseline machining centre is one of the most versatile machine tools in the compact class. This high-performance centre is quick to set up, easy to operate, very stable, highly dynamic and requires little maintenance.

CNC machining with low unit costs

Your benefit in the smallest of spaces: low-cost production with maximum precision, excellent surface accuracy and excellent dynamics

Strong performance - the technical data of the FZ 08 S five axis baseline:

Vertical travelling column principle
Compact footprint (W 1,650 mm x D 2,630 mm)
High rigidity and thermal stability
Highest precision in positioning and simultaneous operation
Dynamic direct drives and precision guides
Integrated CHIRON 2-axis swivel device with direct measuring systems
Ergonomic operating concept and loading concept
Service-friendly access to all units
Low maintenance and durable
Machine tool construction "Designed and Made in Germany"

Technical Data

Travel XYZ max.	450-270-310 mm
Power max.	7.40 kW (25% ED)
Spindle speed max.	15,000 min-1 / 30,000 min-1 (opt)
Chip-to-chip time	from 2.20 s
Rapid traverse max.	60 m / min
Number of tools max.	40
Tool holder	HSK-A40
Tool diameter max.	100 mm
Control	FANUC 31i-B5
