5 Axis Double Column Linear Series

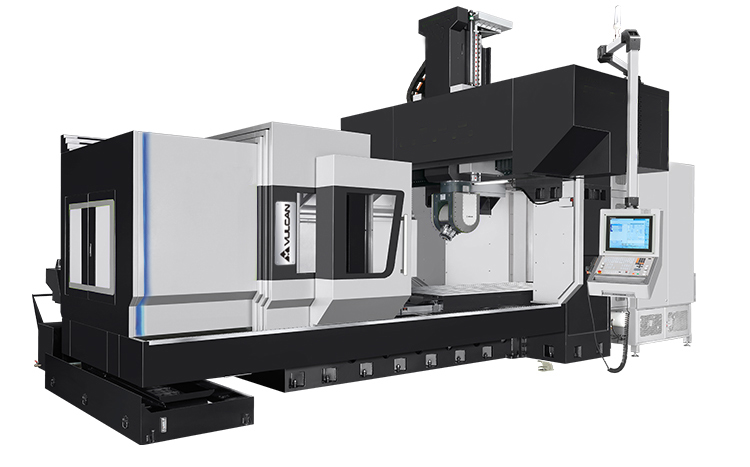

Vulcan 5-axis Double Column Machining Centres features high-speed and high-accuracy. Ideally suited for machining aluminium for the aerospace industry.
By maximizing the use of its modular design, X axis travel up to 10,200mm, Y axis travel up to 4,300mm and Z axis travel up to 1,200mm can be achieved across the 5-axis range.
The Z axis is equipped with four roller type linear guide ways, featuring high position accuracy and low abrasion. Having a four guide ways design offers
the best stability and support to the headstock.
Model
Unit
DC 3231L – 5 Axis
Travel
X axis
mm
3200
Y axis
3100
Z axis
1000 (1200 opt)
Spindle nose to table
110 – 1110 (110 – 1310 opt)
Distance between columns
(max. workpiece width)
2500 (2450)
Table
Table dimensions (L)
3000
Table dimensions (W)
2000
T-slot (width x number x pitch)
28 x 11 x 180
Max. table load
kg
11000
Spindle
Spindle motor (cont./ 30 minute rated)
kW
54 / 54
Spindle speed
rpm
12,500 (Built-in) (20,000 A63 opt)
Spindle nose taper
HSK-A100
feed
Rapid feed-rate (X/ Y / Z)
m/min
20 / 20 / 15
Cutting feed-rate
mm/min
10,000
Accuracy
Positioning accuracy
±0.005 / 300 ; ±0.015 / full travel
P0.03
Repeatability
±0.003
Ps0.023
ATC
Tool storage capacity
pcs
40 (chain-type) (60 opt)
Max. tool length
400
Max. tool weight
25
Tool size (full tools)
Ø125
Max. tool size (next pockets empty)
Ø250
Other
Power consumption
kVA
130
Compressed air
kg/cm2
6.5 x 2
Machine weight (approx.)
tons
46
Machine floor space (L x W x H) (approx.)
m
10.4 x 8.1 x 7.8
All specifications are subject to change without prior notice.
