TC 200 (M) (L)

Name: TC 200 (M) (L)
Brand: Vulcan

Vulcan

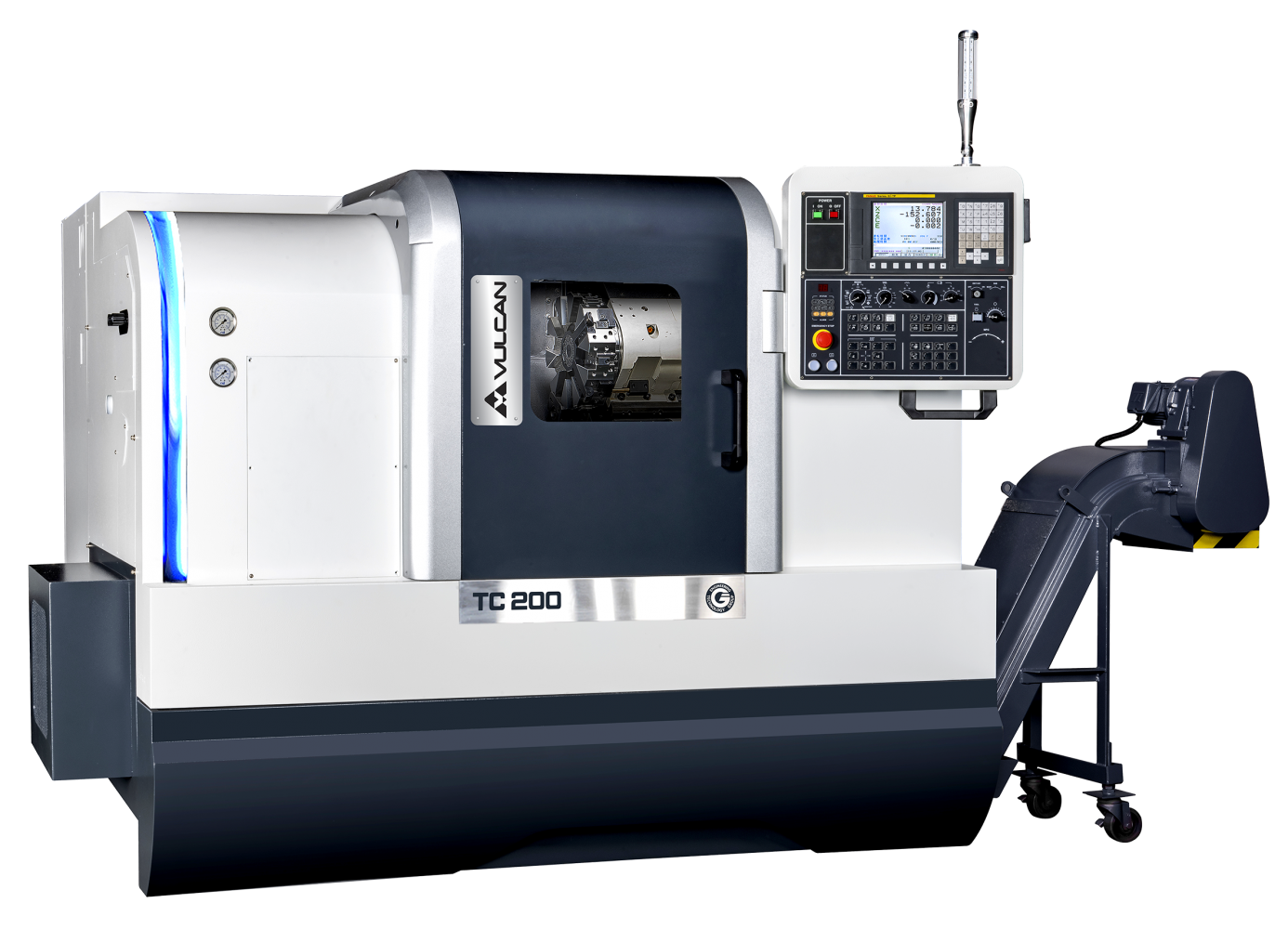

+ The design concept behind the Vulcan TC Series was to create a machine that enhanced both speed and accuracy.

+ Featuring a single spindle and turret, the 45-degree slant bed construction allows for high levels of rigidity and stability.

+ The X and Z axes are mounted with the option of either ball-type linear or boxway guideways.

+ Axis movement is directly driven by a servo motor, which allows for rapid traverse rates on the X and Z axes, reaching 30 m/min.

+ Each machine in the TC Series is equipped with a high-precision, high-speed spindle, enabling for outstanding machining performance.

Download TC 200 (M) (L) Specifications download icon

Download TC 200 (M) (L) File 1 download icon

Technical Specifications

Standard Equipment

MODEL		UNIT	TC 200 (M) (L)	TC 250 (M) (L)	TC 300 (M) (L)
CAPACITY	No. of axis	mm	2-axis / 3-axis (M)	2-axis / 3-axis (M)	2-axis / 3-axis (M)
	Swing over bed	mm	Ø460	Ø600	Ø630
	Max. turning diameter	mm	Ø280	Ø316	Ø450
	Working length	mm	455 / 690 (L)	435 / 1290 (L)	700 / 1300 (L)
SPINDLE	Spindle nose	ISO	A2-6		A2-8
	Spindle bore	mm	Ø61	Ø77	Ø90 / Ø101
	Bar capacity	mm	Ø52	Ø65	Ø77 / Ø91
	Range of spindle speed	rpm	25 – 4200	25 – 3500	10 – 3500 (Ø77) 10 – 2500 (Ø91)
	Live tools speed (M)	rpm	25 – 4000 (M)
CHUCK	Chuck size	mm (in)	Ø200mm (Ø8”)	Ø250mm (Ø10”)	Std: Ø254mm (Ø10”) Opt: Ø304mm (Ø12”)
TURRET	Tool station (random)	Station	2-axis: Hyd LS-160A-8 direct type 3-axis: Servo turret / power turret	2-axis: Hyd LS-240-12 direct type 3-axis: Servo turret / power turret
	O.D. tooling	mm	□ 25 x 25
	I.D. tooling	mm	Ø32	Ø40
CROSS SLIDE (X-AXIS) & CARRIAGE (Z-AXIS)	X-axis travel	mm	165 (140+25)	185 (158+27)	250 (225+25)
	Z-axis travel	mm	490 / 740 (L)	490 / 1340 (L)	740 / 1340 (L)
	Rapid travel speed (X-axis)	m/min	30
	Rapid travel speed (Z-axis)	m/min	30
	Cutting feed rate (Both-axis)	mm/rev.	0.001 – 500
	Dia. of ball screw (X-axis)	mm	Ø32 P10
	Dia. of ball screw (Z-axis)	mm	Ø36 P10	Ø40 P10
MOTOR	Spindle	kW	ß P18i (9/11)	ß P22i (11/15)	ß P30i (15/18.5)
	X-axis	kW	ß 12Bi (1.8)		ß 22Bi (2.5)
	Z-axis	kW	ß 12is (1.8)	ß 12Bi (1.8)	ß 22B (2.5)
	Hydraulic oil pump	kW (HP)	1.5 (2)
	Coolant pump	kW (HP)	0.75 (1)
PROGRAMMABLE TAILSTOCK	Quill dia.	mm	Ø75		Ø90
	Quill stroke	mm	85		100
	Taper of centre	MT	MT 4		MT 5
	Tailstock travel	mm	415 / 660 (L)	380 / 1230 (L)	650 / 1250 (L)
TANK CAPACITY	Hydraulic tank	Litre	40	60
TANK CAPACITY	Coolant tank	Litre	115	190	250
MEASUREMENT	Height	mm	1750	2050
	Weight (NW)	kgs	4500 / 5100 (L)	5000 / 6500 (L)	5600 / 6600 (L)
	Floor space (L x W)	mm	2440 x 1600 / 2900 x 1600 (L)	2600 x 1845 / 3800 x 1845 (L)	3100 x 1845 / 3800 x 1845 (L)

// 3 bar coolant pump

// 130 Litre capacity coolant tank

// Hydraulic turret 8-position (TC200)

// Hydraulic turret 12-position (TC 250/TC 300)

// Automatic lubrication system

// Tool kit

// Work light

// 3-colour beacon light

// Heat exchanger for electric cabinet

// Chip conveyor

// Programmable tailstock

// Automatic parts catcher

// Automatic tool probe
