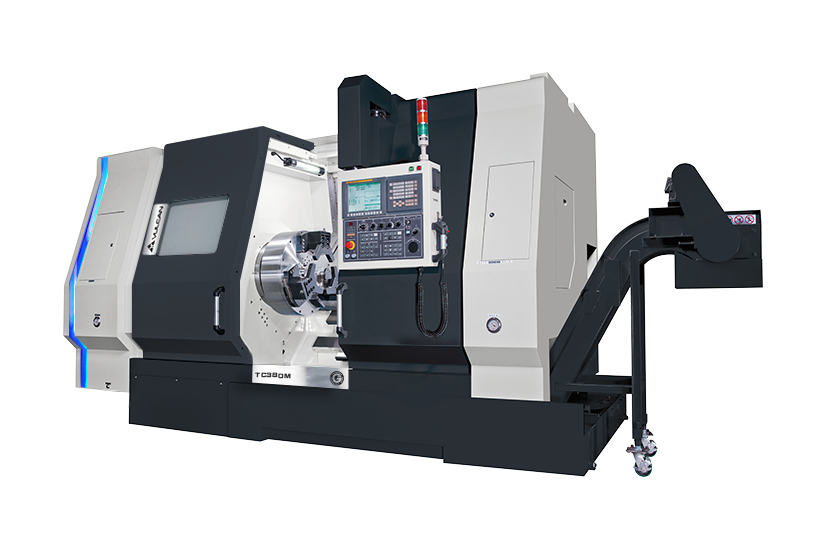

TC 380 (M) (L)

Name: TC 380 (M) (L)
Brand: Vulcan

Vulcan

+ The design concept behind the Vulcan TC Series was to create a machine that enhanced both speed and accuracy.

+ Featuring a single spindle and turret, the 45-degree slant bed construction allows for high levels of rigidity and stability.

+ The X and Z axes are mounted with the option of either ball-type linear or boxway guideways.

+ Axis movement is directly driven by a servo motor, which allows for rapid traverse rates on the X and Z axes, reaching 30 m/min.

+ Each machine in the TC Series is equipped with a high-precision, high-speed spindle, enabling for outstanding machining performance.

Download TC 380 (M) (L) Specifications download icon

Download TC 380 (M) (L) File 1 download icon

Technical Specifications

Standard Equipment

MODEL		UNIT	TC 380 (M) (L)		TC 450 (M) (L)		TC 600 (M) (L)	TC 800 (M) (L)
CAPACITY	No. of axis	mm	2-axis / 3-axis (M)		2-axis / 3-axis (M)		2-axis / 3-axis (M)
	Swing over bed	mm	Ø850		Ø970		Ø1100
	Max. turning diameter	mm	Ø710		Ø850		Ø1020
	Working length	mm	760 / 3040 (L)		1130 / 3090 (L)		2200 / 5110 (L)
SPINDLE	Spindle nose	ISO	Std: A2-8 Opt: A2-11 / A2-15		Std: A2-11 Opt: A2-15 / A2-20
	Spindle bore	mm	Std: A2-8 Ø105 Opt: A2-11 Ø131/ Ø165 A2-15 Ø180		Std: A2-11 Ø160 Opt: A2-15 Ø230 A2-20 Ø320 / Ø360
	Bar capacity	mm	Std: A2-8 Ø89 Opt: A2-11 Ø117, Ø142 / A2-15 Ø166		Std: A2-11 Ø142 Opt: A2-15 Ø200 A2-20 Ø230		Std: A2-11 Ø142 Opt: A2-15 Ø200 A2-20 Ø230
	Maximum spindle speed	r.p.m	Std: 2500 Opt: 2000 / 1650 / 1300		Std: 1500 Opt: 700 / 550 / 450
	Spindle gearbox step	-	2		3		4
	Live tools speed (M)	rpm	Opt: 0 – 3000
CHUCK	Hydraulic Chuck size	mm (in)	Std: Ø300 (Ø12”) Opt: Ø380 (Ø15”) Ø450 (Ø18”)		Optional
TURRET	Tool station (random)	Station	10 / 12		12		12
	O.D. tooling	mm	32 / 25		□ 32		□ 32
	I.D. tooling	mm	Ø50
CROSS SLIDE (X-AXIS) & CARRIAGE (Z-AXIS)	X-axis travel	mm	355+25		425+25		510+25
	Z-axis travel	mm	860 / 3140 (L)		1250 / 3210 (L)		2260 / 5190 (L)
	Rapid travel speed (X-axis)	m/min	12
	Rapid travel speed (Z-axis)	m/min	15 / 10				10 / 8
	Cutting feed rate (Both-axis)	mm/rev.	0.001 – 500
MOTOR	Spindle (cont.)	kW (HP)	a22i	22 (29.5)	a30i	30 (40)	a40i	37 (49.6)
	Spindle (30 min.)	kW (HP)		26 (34.9)		37 (49)		45 (60.3)
	X-axis	kW (HP)	a22Bi- 4 (5.4)		a22Bi- 4 (5.4)		a30Bi- 4 (5.4)
	Z-axis	kW (HP)	a22i- 4 (5.4)		a30i- 7 (9.4)		a30i- 7 (9.4)
	Hydraulic oil pump	kW (HP)	2.2 (3)		3.75 (5)
	Coolant pump	kW (HP)	0.75 (1)
PROGRAMMABLE TAILSTOCK	Quill dia.	mm	Std: Ø110 Opt: Ø160		Ø160		Ø200
	Quill stroke	mm	100		160		200
	Taper of centre	MT	MT.5		MT.6
	Tailstock travel	mm	640 / 2920 (L)		950 / 2910 (L)		1900 / 4900 (L)
TANK CAPACITY	Hydraulic tank	Litre	80
	Coolant tank	Litre	480 / 780 (L)		520 / 810 (L)		670 / 1050 (L)
MEASUREMENT	Height	mm	2235		2445		3050
	Weight (NW)	kgs	12500 / 17900 (L)		14200 / 18400 (L)		18000 / 32000 (L)
	Floor space (L x W)	mm	5304 x 2130 / 7584 x 2130 (L)		6160 x 2230 / 8160 x 2230 (L)		8700 x 3158 / 11700 x 3158 (L)

// 6 bar coolant pump

// Hydraulic turret 10-position

// Automatic lubrication system

// Tool kit

// Work light

// 3-colour beacon light

// Heat exchanger for electric cabinet

// Chip conveyor

// Manual tailstock

// Quill and live centre for tailstock

// 2-speed gearbox
