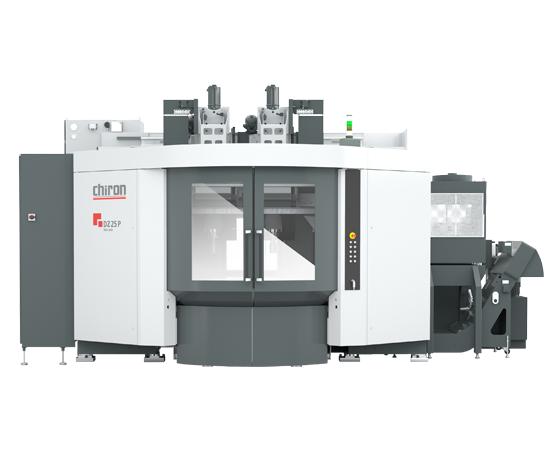

The new CHIRON 25 series is designed for machining complex, large-volume components - with a combination of productivity, accuracy and flexibility that is unmatched in this class. The spindle distance of 800 mm predestines the DZ 25 for the double-spindle production of aluminium components for the automotive and aviation industries.
Operation and loading take place on separate pages. This enables the best access to the work area and a good view of the process - even if the machining centre is supplemented by a pallet changer for workpiece changes parallel to production.
Further advantages are a flexible machine layout with a small footprint, independently movable spindles in the X and Z directions and flexible automation with a robot or gantry. Operation is via the TouchLine system with a large panel on which the machine status can be monitored at any time.
The 25 series is prepared for the SmartLine modules RemoteLine, DataLine and ProcessLine - they promise an additional plus in productivity.
Travel XYZ max.
800-1100-800 mm
Power max.
61.00 kW
Spindle distance DZ with two spindles
800 mm
Spindle speed max.
20,000 min-1
Chip-to-chip time
from 3.5 s
Axis acceleration XYZ max.
10-10-15 m / s2
Rapid traverse max.
120-75-75 m / min
Number of tools max.
2 x 60
Tool holder
HSK-A63 / HSK-T63
Workpiece weight max.
500 kg
Workpiece diameter max.
799 mm
Workpiece height max.
612 mm
Pallet size
630 x 630 mm
Pallet change time
12 s
Perfectly coordinated high-tech modules for the highest demands and individual production use. Highly flexible - thanks to the modular building block principle:
