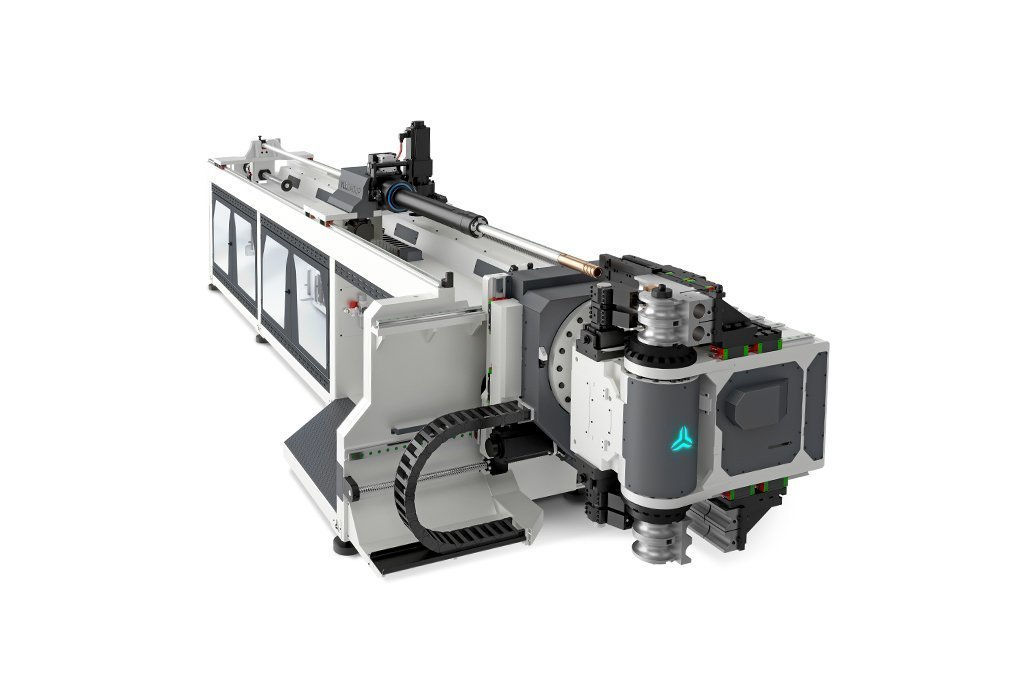

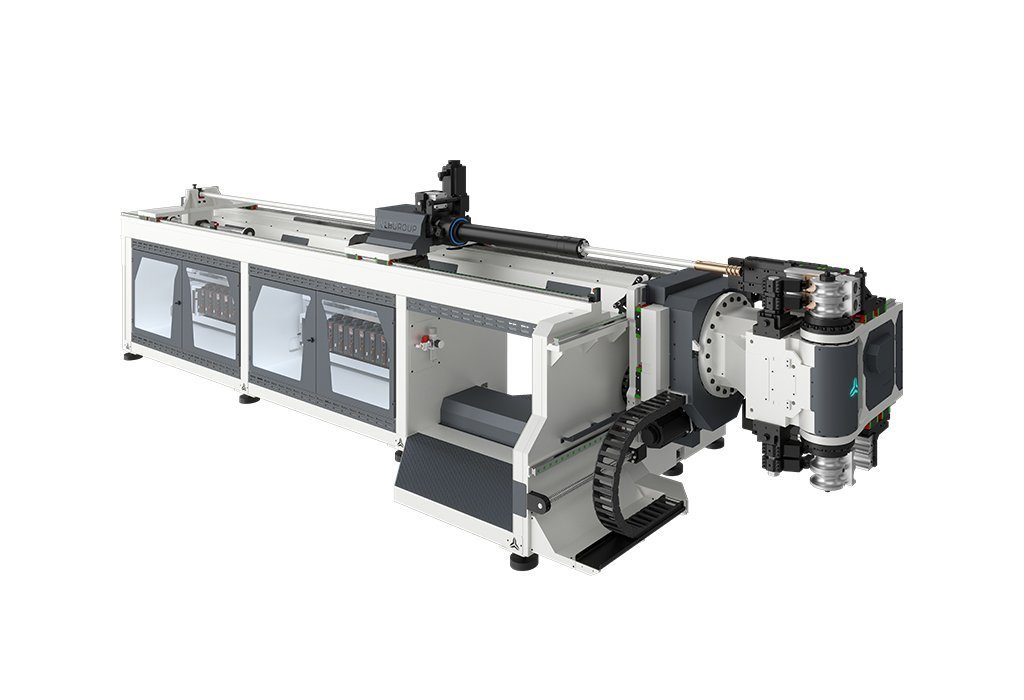

EB ROTARY HEAD SERIES TUBE BENDING MACHINES

The EB Rotary Head CNC series of electric tube bending machines from the VLB Group are equipped with the latest Electric Motion technology. With up to 9 fully electric drive axis, pipes with a diameter of 6mm - 150mm can be bent. Equipped with a Booster system, it is possible to achieve radii up to 1D with reduced marks in the inner bend. The drives on all axes are optimised to reduce energy consumption and increase speed, making these tube bending machines ideal for high-volume production batches that require high consistency.

Ideal sectors that this machine can serve include oil and gas, furniture and automotive.

Features for EB Series of tube bending machines:

• 100% electric drive of all 9 axes.
• Bending of multiple fixed and variable radii in the same cycle.

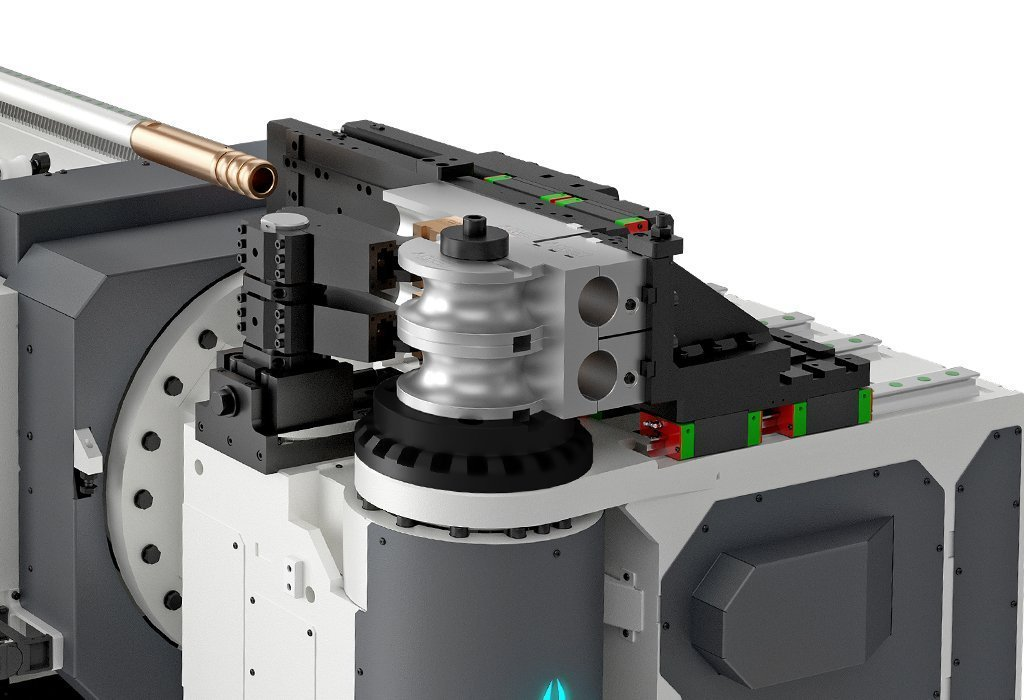

• Quick change of tube bending tool, without having to readjust.
• High production speed and low power consumption.
• Axis movements controlled by servo motors with absolute encoder feedback.
• Simplified synchronisation and optimisation of bending cycles.
• Compact and ergonomic design guarantees operating comfort.
• Low maintenance costs with preventive intervention warnings.
• Sensors that monitor the elastic behaviour of the material, compensate for the tube bending cycle and provide more precision and less waste.

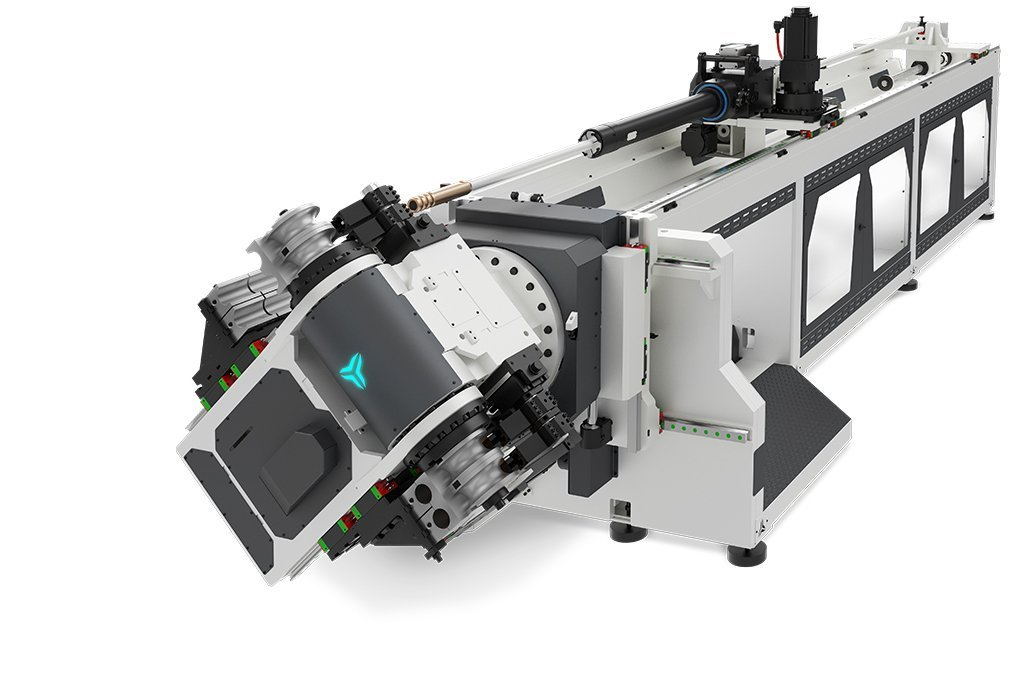

• Bend left or right, with a shorter change time.
• Powerful and intuitive with VLB 3D Software with anti-collision simulation.
• Easily program or import files from the cloud or from the network.
