Horizontal Machining Centre

The HX series of machining centres from Quaser deliver powerful and accurate CNC horizontal machining and are renowned for their state-of-the-art technology.

Quaser CNC horizontal machining centres are one of the best-selling machines across Europe and are successfully utilised by manufacturing businesses worldwide.

Advantages include:

  • Unique spindle technology – grease replenishing system
  • Direct axes transmission
  • HX404/HX504/HX505 four cones clamping system, provide a clamping force at 45,000 N
  • HX635/HX805 four large size taper cones, provide 91,000 N clamping force
  • 4th Axes – 1° indexing table Hirth coupling
  • 4th Axes – 0.001° NC rotary table
  • Easy operation
  • Total solution on coolant and chip management
  • ATC system

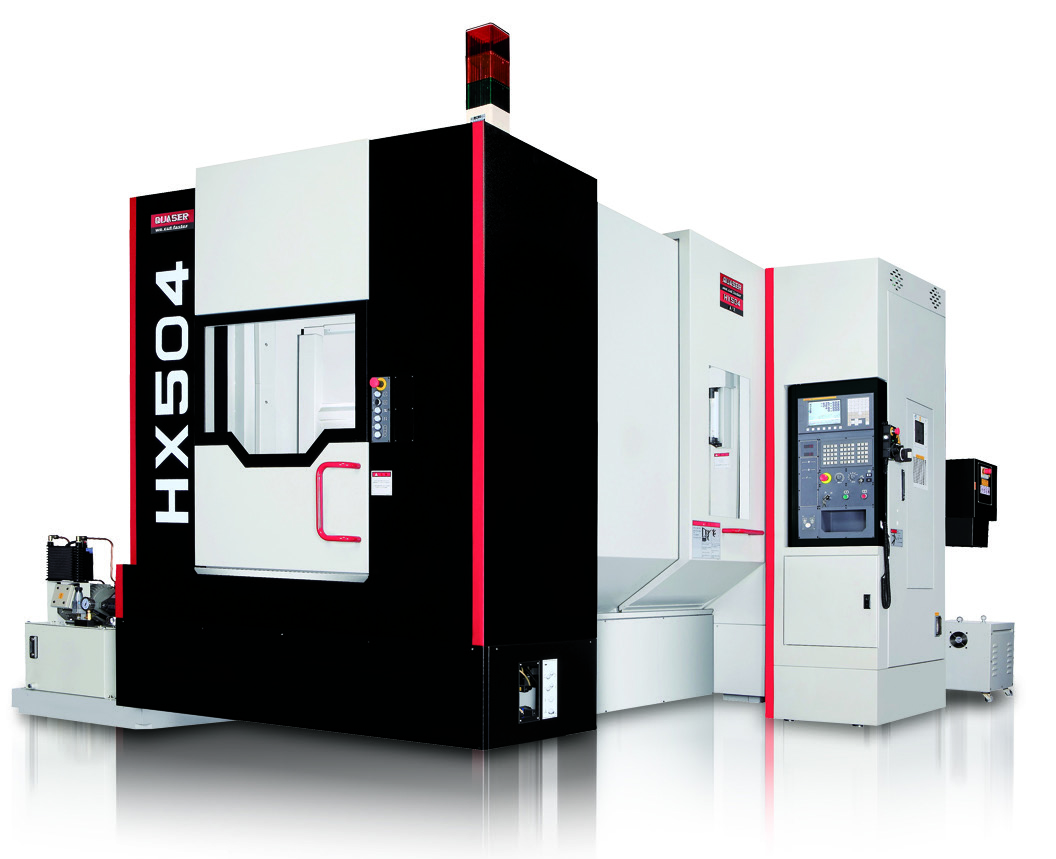

An image of HX 504
Download HX 504 Specifications download icon
Technical specification
Technical data HX504C HX504E HX504P
Work Range
Pallet size (mm) □500
Max. work swing diameter (mm) Φ762
Max. work piece height (mm) 900
Travel X (mm) 762
Travel Y (mm) 640
Travel Z (mm) 810
B minimum indexing (degree) 1/0.001
Table load capacity (kg) 500
Pallet changer
Number of pallet 2
Method of pallet changer Arm type
Main spindle
Spindle taper 40 taper
Max. spindle speed 8K ~ 10 9K ~ 12 9K ~ 15K
Tool changer
Magazine positions 48(std.) 60(opt.) 60 (std.)  120 (opt.) 240 (opt.) 60 (std.)  120 (opt.) 240 (opt.)
Max. tool diameter (mm) 76.2 95 76.2 95 76.2
Max. tool dia. Due to neighbor pots are empty (mm) 125 150 190 150 190 150
Max. tool length (mm) 450
