TNC 640

Heidenhain

Besides milling, the TNC 640 from HEIDENHAIN is also capable of combined milling and turning operations. It is particularly well suited for milling-turning, HSC and 5-axis machining on machines with up to 24 axes. The workshop oriented and versatile control features numerous functions. It is especially attractive for the following areas of application:

Universal milling machines
Combined milling-turning machines
High speed milling
Five-axis machining with swivel head and rotary table
Five-axis machining on very large machines
Boring mills
Machining centers and automated machining

The optimized user interface of the TNC 640 gives you a fast overview: various color coding, standardized table editors and smartSelect—the dialog-guided fast selection of functions—aid you at your work.

Specification

Specifications	Standard	Option

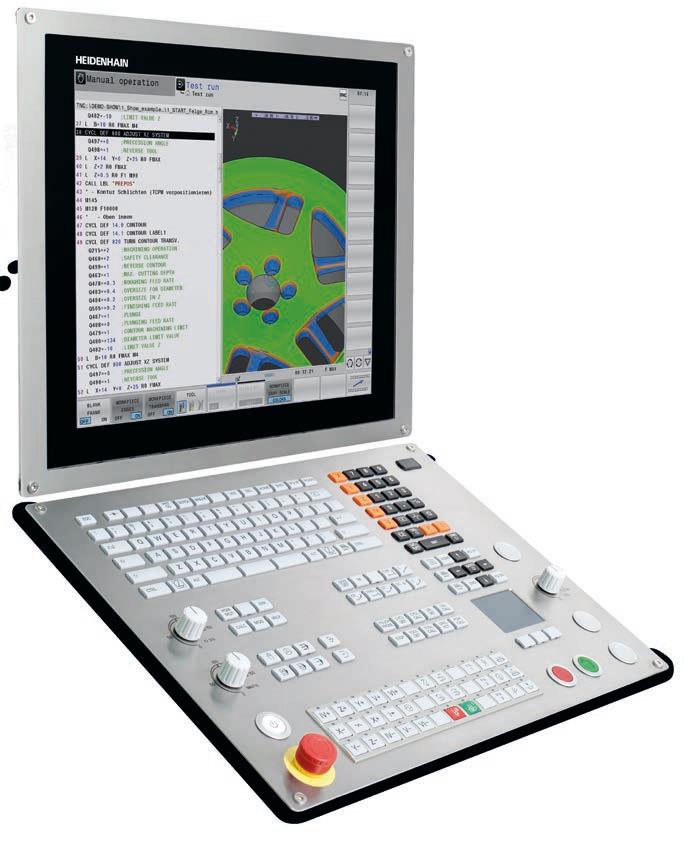

Components	• • • •		MC main computer CC or UEC controller units BF TFT flat-panel display with soft keys (15-inch or 19-inch) TE control panel (suitable for 15-inch or 19-inch screens)
Operating system	•		HEROS 5 real-time operating system for machine control
Memory	• •		RAM memory: 4 GB Program memory: SSDR approx. 32 GB HDR approx. 160 GB
Input resolution and display step	• •	23 23	Linear axes: to 0.1 µm Angular axes: to 0.000 1° Linear axes: to 0.01 µm Rotary axes: to 0.000 01°
Input range	•		Maximum 999 999 999 mm or 999 999 999°
Interpolation	• • •	9 8	Linear in 4 axes Linear in 5 axes (requires an export permit) Circular in 2 axes Circular in 3 axes with tilted working plane Helical: superimposition of circular and straight paths
Block processing time	•		0.5 ms (3-D straight line without radius compensation)
Axis feedback control	• • • •		Position loop resolution: Signal period of the position encoder/1024 Position controller cycle time: 200 µs (100 µs with option 49) Speed controller cycle time: 200 µs (100 µs with option 49) Current controller cycle time: minimum 100 µs (minimum 50 µs with option 49)
Range of traverse	•		Maximum 100 m (3937 inches)
Spindle speed	•		Maximum 100 000 rpm (with 2 pole pairs)
Error compensation	• •		Linear and nonlinear axis error, backlash, reversal peaks during circular movements, reversal error, thermal expansion Static friction, sliding friction
Data interfaces	• • • •	18	One each RS-232-C/V.24 max. 115 kbps Extended data interface with LSV2 protocol for remote operation of the TNC over the data interface with the HEIDENHAIN software TNCremo or TNCremoPlus 2 x Gigabit Ethernet interface 1000BASE-T 5 x USB (1 x front USB 2.0, 4 x USB 3.0) HEIDENHAIN-DNC for communication between a Windows application and TNC (DCOM interface)
Diagnostics	•		Fast and simple troubleshooting through integrated diagnostic aids
Ambient temperature	• •		Operation: +5 °C to +40 °C Storage: –20 °C to +60 °C
