With a rotary table diameter of 600 mm, the G6i is a compact vertical machining centre designed for agile, smart machining of smaller workpieces requiring complex geometries and intricate features. This highly versatile VMC delivers full 5-axis CNC machining, with the built-in spindle moving along the X, Y, Z-axis, and the table moving in rotary C-axis and swivelling A-axis.
The G6i is equipped with the ART™ intelligent monitoring system (hardware & software). Which enables the adoption of automation and optimises manufacturing productivity through real-time machining data, achieving sustainability in all aspects of business operations.

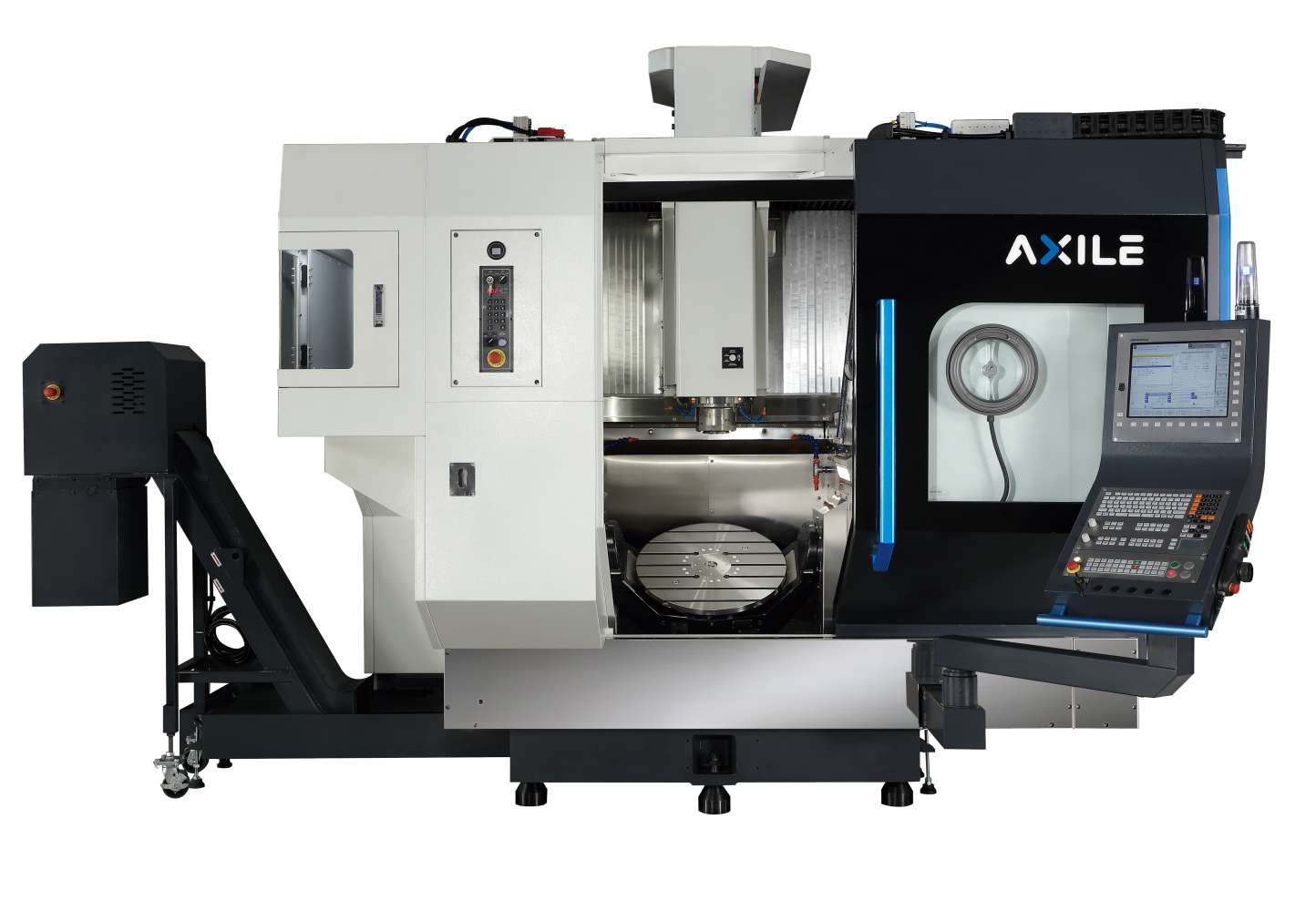

A snapshot of the AXILE - Digital G6i VMC
ART™ monitoring system (hardware & software)
High-performance built-in spindle
Table moved by swivelling-rotary axes
Perfect U-shape closed-gantry design
Linear scales in all guideways
Highly fast and dynamic A/C axis movement based on torque motor technology
Large tool magazine as a standard feature
MODEL
UNIT
G6i
STANDARD LINEAR AXES
X axis
mm
650
Y axis
850
Z axis
500
STANDARD ROTARY AXIS
Table diameter
Ø 600
Table load
kg
600
A axis driven system
Swivelling
Dual torque motors
C axis driven system
Rotary
Torque motor
STANDARD AXIS DRIVE
Ballscrew pitch
12
Maximum Feedrate
m/min
36
Guideways
45 – roller type
Lubrication type
Grease
Double driving system in Y axis
Gantry
STD
STANDARD SPINDLE
Driven system
Built in
Maximum speed
rpm
20,000
Power S1/S6 (40%)
kW
25/32
Torque S1/S6 (40%)
Nm
86.8/111.8
Interface
HSK-A63
Bearing lubricant
Oil air
Water chiller ±0.2 degree
STANDARD ATC
Magazine capacity
Tools
80
Smart tool load station
All specifications are subject to change without prior notice.

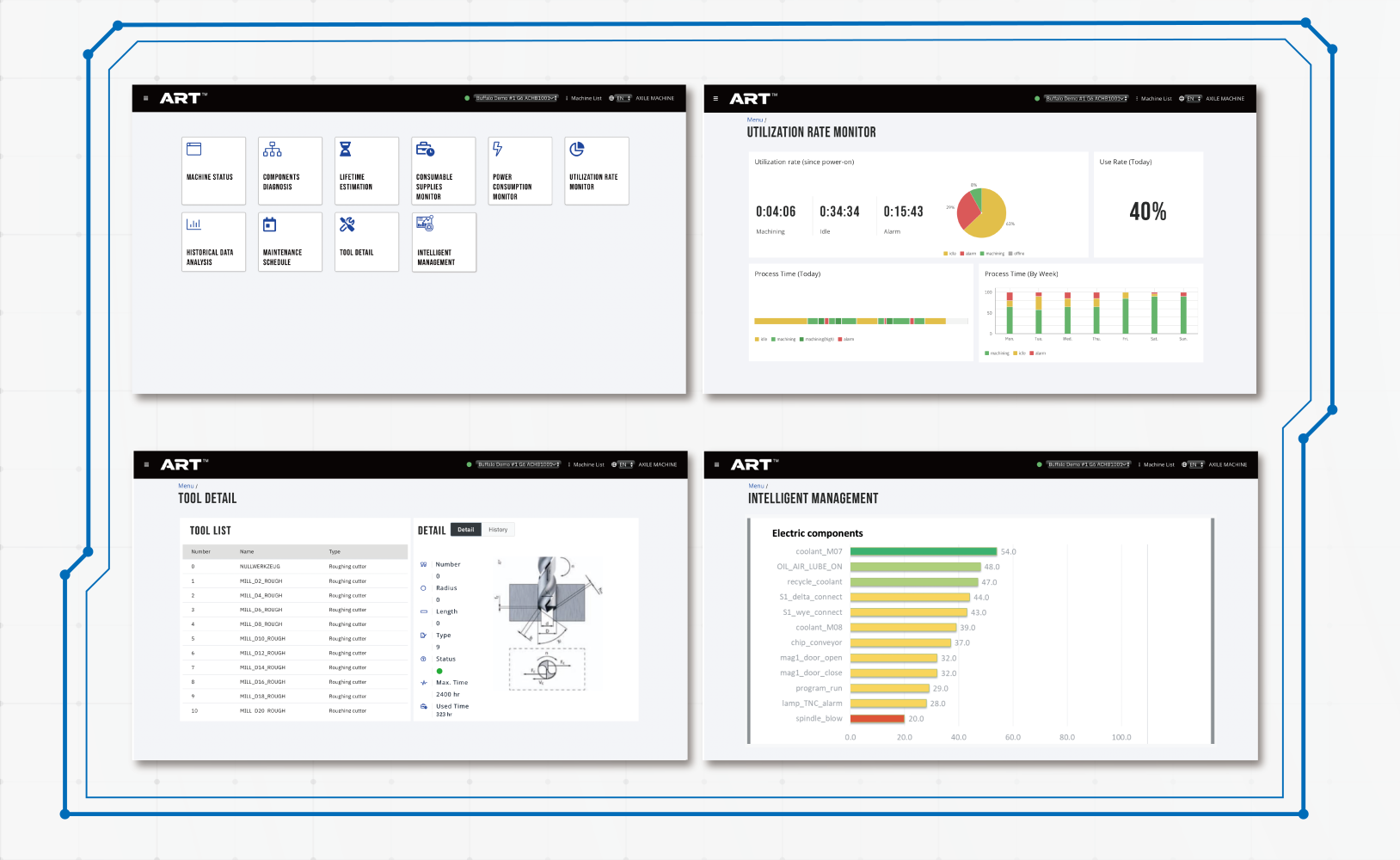

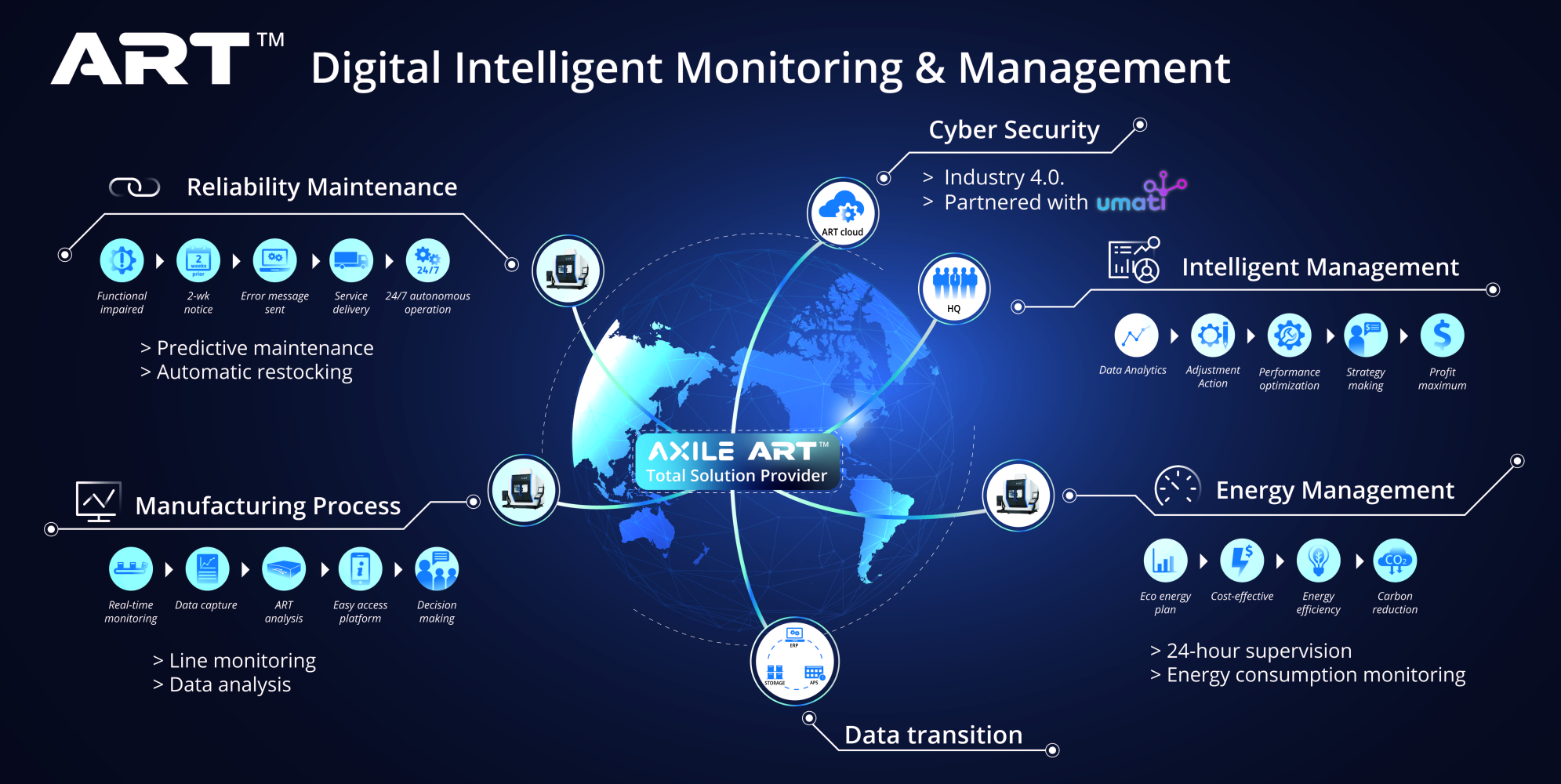

RELIABILITY MAINTENANCE (RM): Unexpected downtime is the enemy of profitability. ARTTM delivers machine component diagnostics, machine lifetime estimation and consumables supply monitoring to prevent machine failure and eliminate unplanned downtime.
MANUFACTURING PROCESS (MP): Knowledge is power. ARTTM achieves superior data collection and analytics on machine status and utilisation rate, to deliver real-time information for optimised production strategies.
ENERGY MANAGEMENT (EM): Every penny counts. ARTTM enables manufacturers to monitor their power consumption, to identify ways to maximise energy efficiency and reduce expenditure.
INTELLIGENT MANAGEMENT (IM): ARTTM provides analytical information for managers to understand the machine performance and take immediate action to optimise the machines capacity.
3xhydraulic+1xpneumatic port interface on A/C table
40um filter for hydraulic tank
Automatic roof for overhead crane loading
Air through spindle (wet/Dry rotary union) with solenoid to adjust air pressure
Linear scales for X/Y/Z axis
EMC + Safety module for CE regulations
LED signal lamp with 3 colours
Electrical parts preparation for BLUM laser tool setter
SMT function - TPC - Tool-tip Positioning Control
SMT function - SVS - Spindle Vibration Supervision
SMT function - AAC - Axial Accuracy Control
DCM function (Dynamic Collision Monitoring)
Levelling pad (height adjustable)
