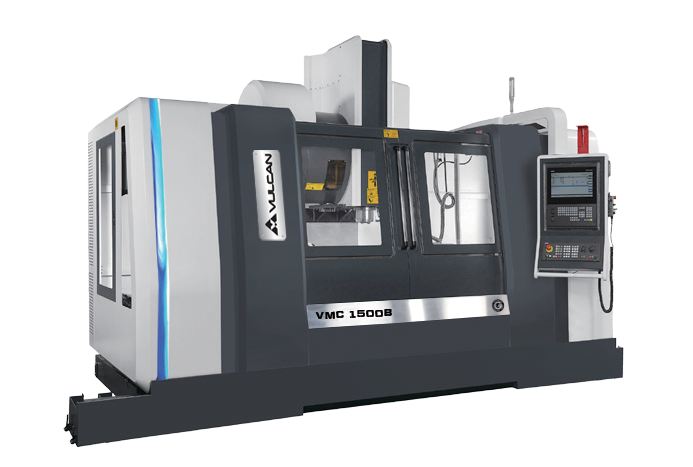

VULCAN HEAVY CUTTING VERTICAL MACHINING CENTRES
+ The casting assembly of Vulcan machining centres have been designed using a Finite-Element- Analysis process to ensure the machine can handle cutting forces and weight loads associated with the demands of the machine specifications.
+ All axes use box way design, which allows Vulcan VMC’s to accommodate extremely heavy loads whilst maintaining smooth motion with increased dampening and cutting force characteristics.
+ The Vulcan base and saddle utilise a wide design to prevent issues with sagging and overhanging when loading heavy components.
+ The Z-axis casting uses a reinforced rib design to achieve structural strength through the entire casting length.
+ Each axis uses a grade C3 precision-ground ball screw and a pre-tensioned design in order to improve Vulcan’s performance, with each axis motor directly coupled to the ball screw.
MODEL
UNIT
VMC 650B
VMC 1000B
VMC 1200B
VMC 1500B
TRAVEL
X-axis
mm
650
1000
1200
1500
Y-axis
500
600
700
Z-axis
(BT-50: 630)
Spindle centre to column
530
598
705
730
Spindle nose to table surface
125~620
130~690
130~780
150~800
TABLE
Table (L x W)
800 x 470
1100 x 500
(BT-50: 1100 x 600)
1300 x 700
1650 x 700
T-slot (No. x Width)
5 x 18 x 100
Max. table load
kg
1400
MAX.
TRAVERSE SPEED
X / Y / Z-axis
M/min
25 / 25 / 25
25 / 25 / 20
20 / 20 / 15
ATC
Swing Arm type BT-40
T
24
24 / 30
Chain type BT-50 (Opt.)
N / A
32 / 40
SPINDLE
Type-CAT/BT/DIN (Opt. HSK)
40
40 / 50
Motor (Other power options)
kW
5.5~7.5 (7.5~11)
7.5~11 (11~15)
11~15 (15~18.5)
Direct-drive BT-40
rpm
10000 / 12000 / 15000
Belt-drive BT-40 (Opt.)
8000 / 10000 / 12000
Built-in spindle (Opt.)
20000 / 30000
(BT-40/ HSK-E40/50/63)
20000
(BT-40/ HSK-E63)
Belt-drive BT-50 (Opt.)
6000 / 8000
Direct-drive BT-50 (Opt.)
8000 / 10000
MISCELLANEOUS
Power consumption
KVA
25
35
45
Pneumatic supply
kg/cm2
5.5~6.5
Coolant tank capacity
L
256
367
510
560
Machine weight
4800
6800
7800
11000
Floor space requirement (LxW)
2180 x 2040 2
900 x 2090
3600 x 2244
4400 x 2244
Floor space requirement
(with conveyor) (LxW)
3280 x 2040
3735 x 2090
4759 x 2244
4560 x 2244
// 20 bar CTS
// Belt type chip conveyor
// Tool kit
// Spindle chiller
// Mechanical oil/coolant separator
// 3-colour beacon light
// Rigid tapping
// LED work light
// Levelling blocks & bolts
// Spindle bearing air purge
// Heat exchanger for electrical cabinet
// Auto interrupt & power off system (M30)
// Z axis motor with brake system
// Coolant pump
// Portable hand wheel
// Guideway covers (X,Y,Z)
// Spindle coolant nozzle system
// CNC control manuals, Operation manual, Maintenance manual
// Central lubrication system
// Auxiliary coolant gun
// Inspection report (digital format)
// Fully enclosed machining area
// Cutting air blast
// Wash down system
