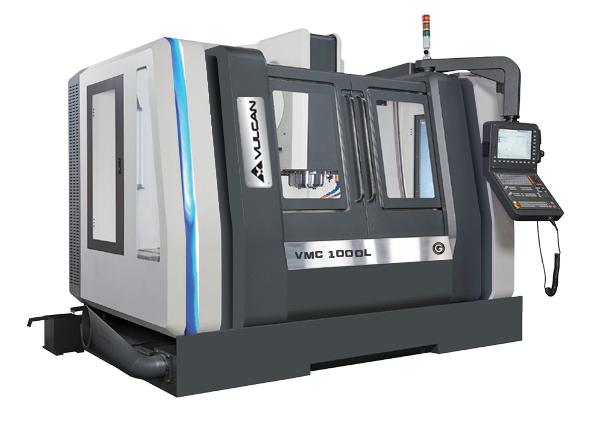

VULCAN HIGH-SPEED AND PRECISION MACHINING CENTRES
+ The casting assembly of Vulcan machining centres have been designed using a Finite-Element-Analysis process to ensure the machine can handle cutting forces and weight loads associated with the demands of the machine specifications.
+ All axes use an extra-wide 45mm roller type linear guideway to allow Vulcan VMC’s to accommodate heavy loads with fast accelerations and low friction whilst maintaining accurate positioning.
+ The Vulcan base and saddle utilise a wide design to prevent issues with sagging and overhanging when loading heavy components.
+ The Z-axis casting uses a reinforced rib design to achieve high structural strength through the entire casting length.
+ Each axis uses a grade C3 precision-ground ball screw and a pre-tensioned design In order to improve Vulcan’s performance, with each axis motor directly coupled to the ball screw.
MODEL
UNIT
VMC 610L
VMC 710L
VMC 850L
VMC 1000L
TRAVEL
X-axis
mm
610
710
850
1000
Y-axis
400
450
600
Z-axis
460
650
Spindle centre to column
390
514
598
Spindle nose to table surface
130-580
130-590
130-780
TABLE
Table (L x W)
650 x 400
760 x 420
1000 x 500
1160 x 600
T-slot (No. x Width)
4 x 18 x 75
3 x 18 x 100
5 x 18 x 100
Max. table load
kgs
700
800
MAX. TRAVERSE SPEED
X / Y / Z-axis
M/min
36 / 36 / 32
ATC
Swing Arm type BT-40
T
20 / 24
24 / 30
Chain type BT-50 (Opt.)
N / A
32 / 40
SPINDLE
Type-CAT/BT/DIN (Opt. HSK)
40
Motor (Other power options)
kW
5.5~7.5
5.5~7.5 (7.5~11)
7.5~11 (11~15)
Direct-drive BT-40
rpm
10000 / 12000 / 15000
Belt-drive BT-40 (Opt.)
8000 / 10000 / 12000
Built-in spindle (Opt.)
20000 / 30000 (BT-40/ HSK-E40/50/63)
Belt-drive BT-50 (Opt.)
6000 / 8000
Direct-drive BT-50 (Opt.)
8000 / 10000
MISCELLANEOUS
Power consumption
KVA
30
35
Pneumatic supply
kg/cm2
5.5~6.5
Coolant tank capacity
L
256
350
367
Machine weight
kg
4500
4800
6500
6800
Floor space requirement
(LxW)
2180 x 1852
2180 x 2040
2620 x 2090
2900 x 2090
(with conveyor) (LxW)
3283 x 1852
3282 x 2040
3650 x 2090
3735 x 2090
// 20 Bar CTS
// Safety Door
// Tool kit
// Spindle chiller
// Mechanical oil/coolant separator
// 3-colour beacon light
// Rigid tapping
// LED work light
// Levelling blocks & bolts
// Spindle bearing air purge
// Heat exchanger for electrical cabinet
// Auto interrupt & power off system (M30)
// Z axis motor with brake system
// Coolant pump
// Portable hand wheel
// Guideway covers (X,Y,Z)
// Spindle coolant nozzle system
// CNC control manuals, Operation manual, Maintenance manual
// Central lubrication system
// Auxiliary coolant gun
// Inspection report (digital format)
// Fully enclosed machining area
// Cutting air blast
// Wash down system
